Circuit Breaker 255 Series 15A - Panel Mount - NON Threaded - Mini Size.
NON-Threaded - 10 Thru-hole insert

Very compact size.
This tiny single pole thermal circuit breaker external ignition protected & weatherproof.

CB255 Type III Ignition Protected Weatherproof Panel-Mount Manual Reset Circuit Breaker with “Push-to-Trip”  32Vdc

  • Marine rated IP66.
  • Switchable

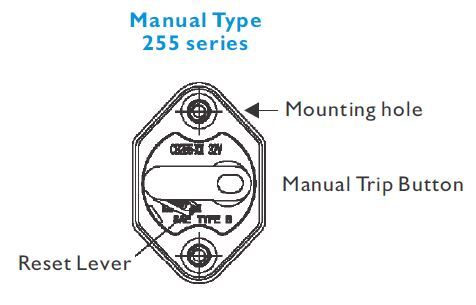

  • Manual reset with 'Push to Trip'
  • Panel mount
  • Weatherproof.
  • Ignition protected

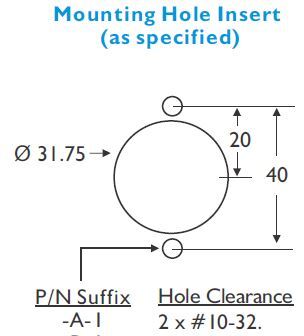

  • Mounting Holes  - #10 Thru-hole insert (NON threaded)
  • Ideal for DC power systems in marine applications, trucks, buses & RVs.
  • Single Pole
  • Voltage 32VDC
  • Operating Temp: -40°C to 85 °C
  • Storage Temp: -40°C to 125°C
  • Approvals: SAE J553, J1171 & ABYC E-11.

(992314)





SKU 992314
Brand Bussman
Shipping Weight 0.2000kg
Shipping Width 0.070m
Shipping Height 0.070m
Shipping Length 0.100m
Unit Of Measure Each
