Muir Reversing 2/4 Pole Solenoid KIT 12V F801076 (now  F801087) - Includes Up/Down Remote Control Switch and Panel

Suits Most 600W (now 900W) Muir 12V Motors).

This kit consists of the Muir P801043 2/4 pole reversing solenoid plus a Muir up/down control rocker switch with panel (F801087). The kit  of both items is Muir PN F801087.

Anchor winches require a solenoid to match the anchor winch.

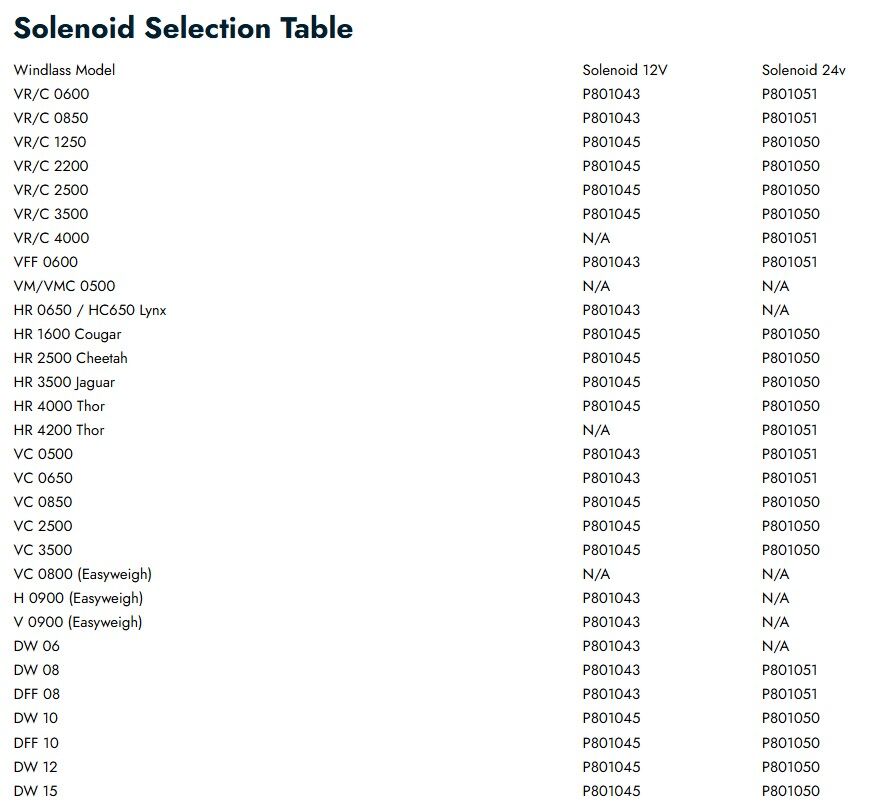

Solenoids should match the winch brand model and voltage (choice of 12V, or 24V) they are available as 2 or 3 pole - double 4 pole acting solenoids are also available for 4 wire motors.
Heavy duty solenoids provide reversing at the flick of a switch for all Muir model windlasses and capstans in 12V (24V is also available).
Solenoids suit the updown switch and can also be used in conjunction with deck switches, remote up/down panels and auto anchor.
Includes Up/Down Remote Control Switch and Panel.

Suits Muir 12 VOLT only models or the following:

  • Muir VR0600 / VRC0600 12 VOLT
  • Muir VFF 0600 12V
  • Muir VR0850 / VRC0850 12V
  • Muir HR 0650 / HC 650 Lynx 12V
  • Muir VC 0500 12V
  • Muir VC 0650 12V
  • Muir H0900 (Easyweigh) 12V
  • Muir V0900 (Easyweigh) 12V
  • Muir DW06 12V
  • Muir DW08 12V

(991628)

Tips and Practical Advice:

​(A second station only requires an up-down switch without extra solenoids).

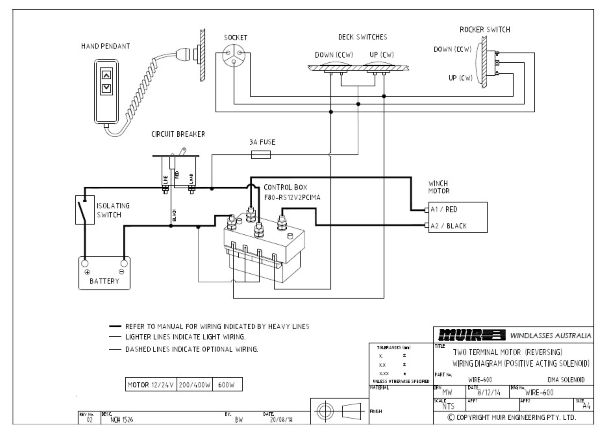

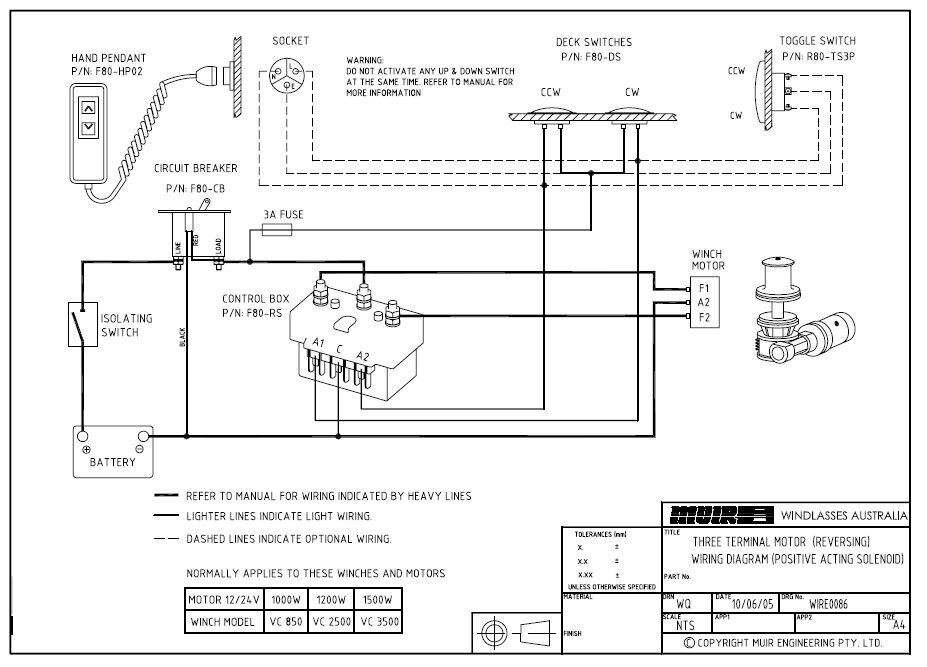

Wiring Diagram:



SKU 991628
Model # F801076
Brand Muir
Shipping Weight 1.1000kg
Shipping Width 0.140m
Shipping Height 0.160m
Shipping Length 0.200m
Shipping Cubic 0.004480000m3
Unit Of Measure Kit
