BEP Battery Switch 2 Positon ON-Off Mini Surface Mount 275A Continuous - 113550/701B
On / Off Function Only

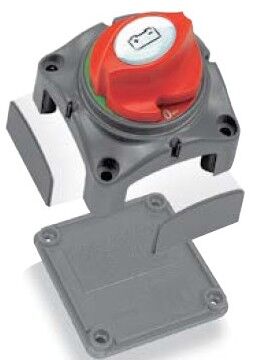

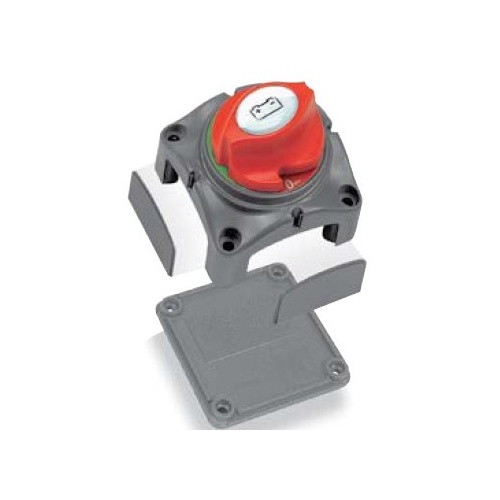

The 701 Contour Battery Master Switch is a simple on/off battery master switch.

Features:

  • Removable rear cover insulates the rear terminals against any short circuits.
  • Removable side plates on four sides provide easy access for heavy duty battery cables.
  • The control knob cannot be removed whilst in the on or off position, however itcan be removed by switching to an anti-theft position.
  • Moulded in high temperature, fibre-reinforced plastics.
  • Meets ABYC requirements.

Specifications:

  • Continuous rating: 275 Amps DC
  • Intermittent rating: 455 Amps DC
  • Cranking rating: 1250 amps DC for 10 seconds
  • Voltage rating: 48 volts DC maximum
  • Terminal stud size: 2 x 10mm





(986210)

SKU 986210
Model # 701S-SM
Barcode # 870216000015
Brand BEP
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Unit Of Measure Each
