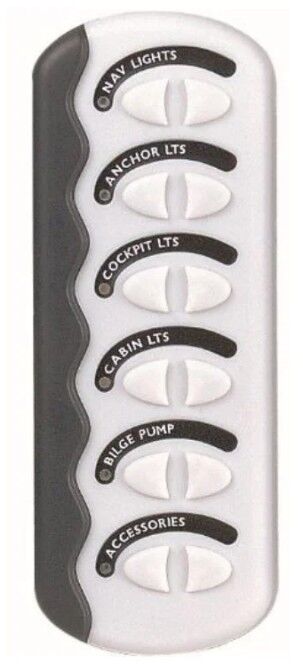

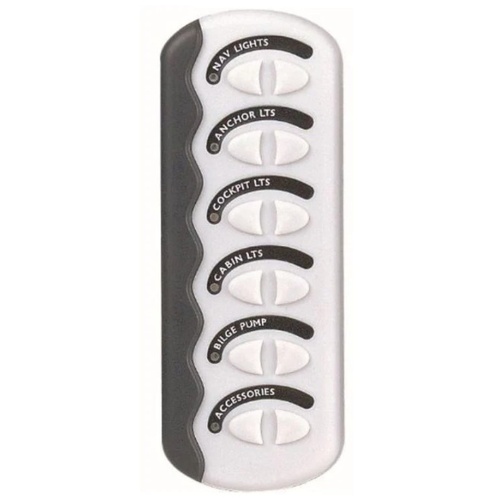

BEP White Contour Gen2 6 Gang Splashproof 12/24V Switch Panel - Wired with Fuses  - CG2-6W-F-W / 113782

12/24V splashproof marine switch panel with red LED backlit display indicator lights.

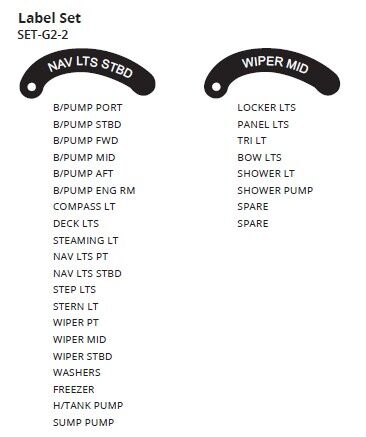

Supplied with interchangeable switches and a set of G2-2 labels (etxra label sets also available - see below).
Switch rating: Rated  as 16A for 12V, or 8A for 24V.
Colour: White

Number of switches: 6
Fuses included: Yes (3)

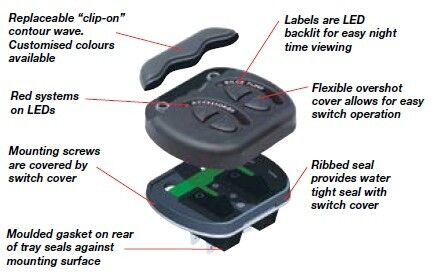

Features:

  • G2 contour switch panels can be mounted vertically or horizontally
  • Supplied complete with on/off switches, these can be interchanged with a variety of different switch options.

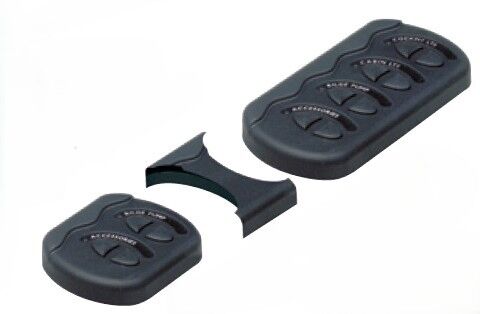

  • A joiner (CG2-JB) is available for multiple panel installations. (see below).
  • Mounting screws covered by switch cover
  • Backlit red LEDs display when switch is on
  • Flexible overshot cover allows for easy switch operation
  • Ribbed gasket provides watertight seal with switch cover
  • Molded gasket on panel base creates watertight seal against mounting surface
  • Smart design allows the labels to be read whether vertically or horizontally mounted.

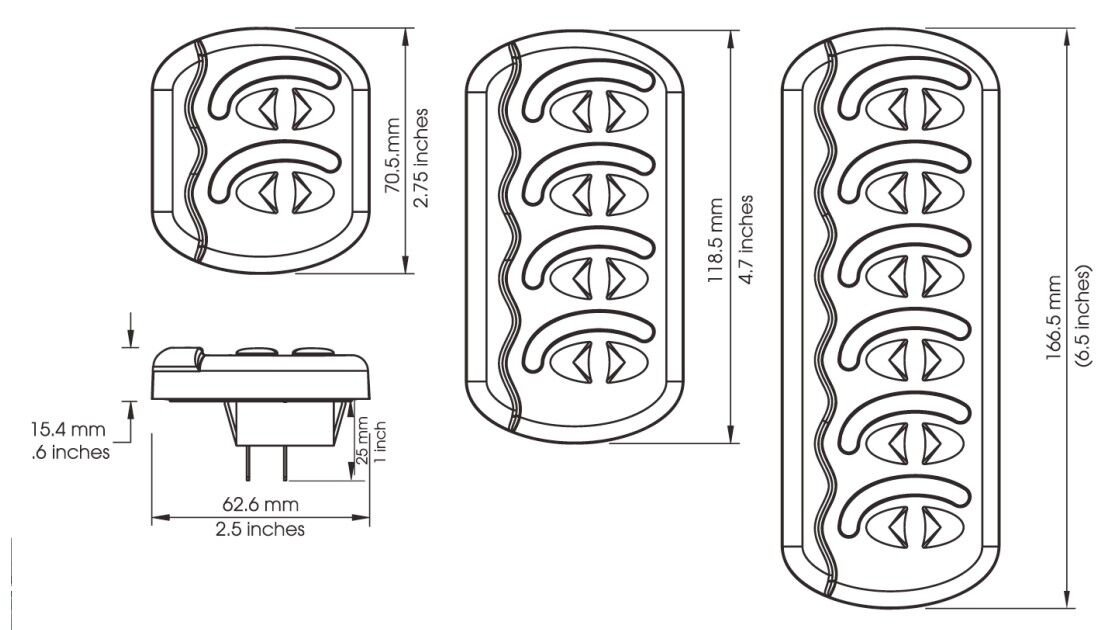

Dimensions:

  • Overall: 167mm x 63mm x 16mm
  • Cut Out: 132mm long
  • Intrusion behind dash: 25mm

(987332)

SKU 987332
Barcode # 870216003283
Brand BEP
Shipping Weight 0.3300kg
Shipping Width 0.110m
Shipping Height 0.100m
Shipping Length 0.190m
Shipping Cubic 0.002090000m3
Unit Of Measure Each
