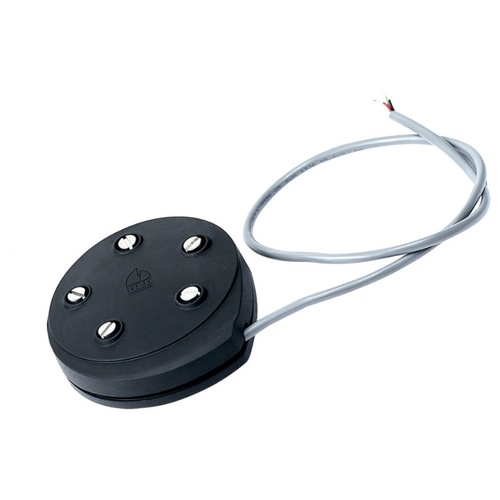

BEP Ultrasonic NON Programmed TS1 Tank Sender - SUR/TS1 / 113360

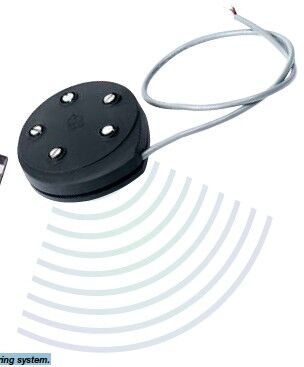

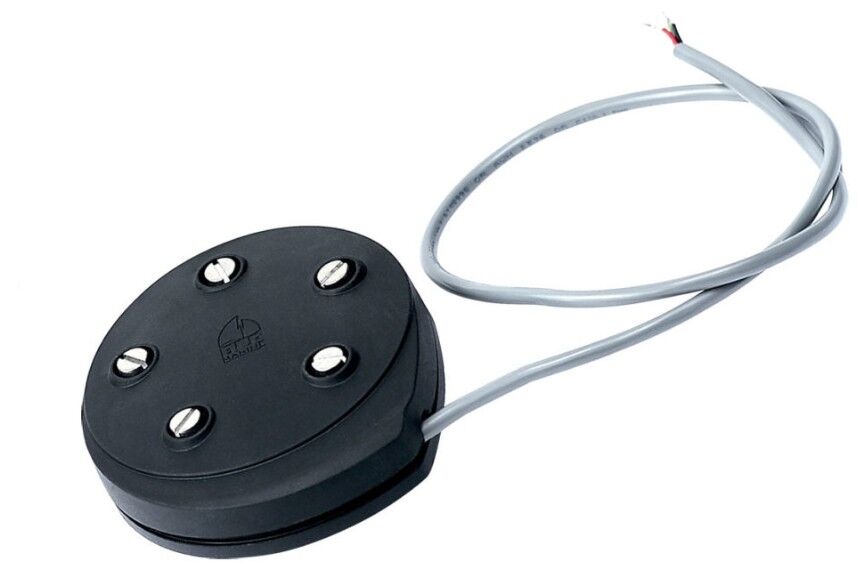

The BEP TS1 is an ultrasonic tank sender unit that has no moving parts, and can be used in fuel tanks (petrol or diesel), freshwater, grey water or black water tanks.
The TS1 is ideally suited to analogue instruments that have a resistive range of 10-180ohm, 240-33ohm or 10-300ohm.
The TS1 signal is not a true resistive signal and cannot be used with an electronic engine monitoring system.

Suits: Any shape tank with minimum a depth of 200mm to a maximum depth of 2 metres.
Designed for top mount installations only.

The unit operates on the same principle as a depth sounder and can be configured to be used in conjunction with BEP, Veethree,
Faria, VDO and many other analogue gauges from most popular instrument manufacturers (not to be used with electronic gauges).
The low profile sender unit can be fitted in metal or plastic tanks, and is resistant to petrol, diesel, water and toilet chemicals.
It has a 10-32V operating range and an operating temperature range of 4-65°C.

Features:

• Handles common outputs – 240-33, 10-180, Vetus 10-300 and 0-5V tanks from Marinco® BEP, Dometic SeaStar, Faria, VDO and many other popular instrument brands. (When connecting to non-adjustable gauges the TS1 must be pre-calibrated).
• Can be set for tank dimensions via computer using Marinco® BEP’s proprietary TS1 software, avoiding experimental tank filling on site.
• Connects directly to the DC systems monitors (113386) when configured to a 0-5V output
• Is set for 0-2000mm depth off the shelf (not suitable for tank depths less than 200mm)
• Operating voltage: 10-32V
• Current draw: 25 mA with 5V gauge output
• Measurement method: Acoustic sonic measurement
• Accuracy Distance: 0–6.5 ft (2000mm) at 2mm accuracy
• Mounting: SAE 5 stud mounting pattern with gasket, seal and
• screws (top mount only).
• Environmental temperature: 39.2–149°F (4–65°C)
• Chemical resistance: Petrol, diesel, water, toilet chemicals
• Tank type style: Metal and plastic with non linear capacity
• Works with petrol
