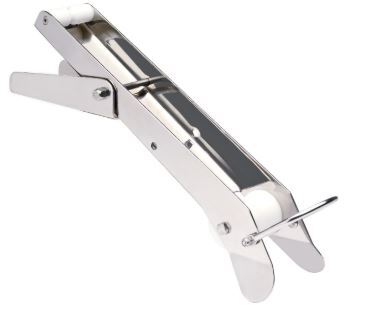

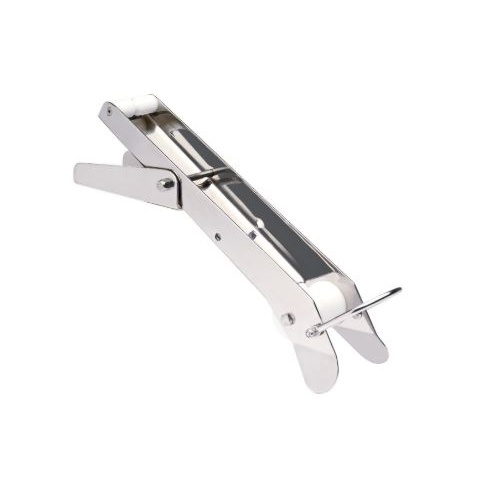

Bow Roller Hinged Extendable Self-Launching P104340

This self launching extendable bow roller is ideal on boats such as bow riders and some other trailer boats, where you need to increase distance between the anchor and the winch.

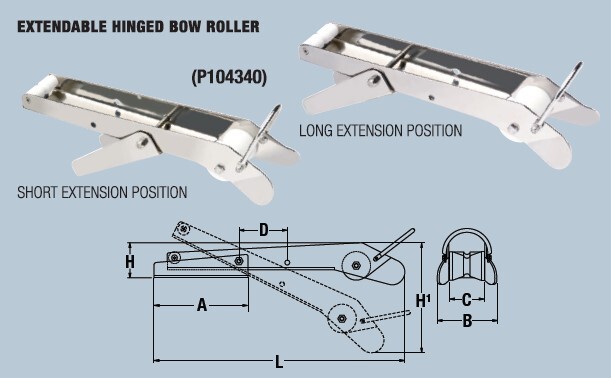

It can be extended or shortened by 100mm by moving the bolt position (see picture).

The MAXSET Bow Roller design guarantees that MAXSET stainless steel and galvanised anchors (and also other brand similar anchors), are efficiently self-launched during anchor deployment. When the anchor is fully retrieved, the MAXSET bow roller ensures that the anchor fits securely into the roller and will not rattle around when the boat is under way.

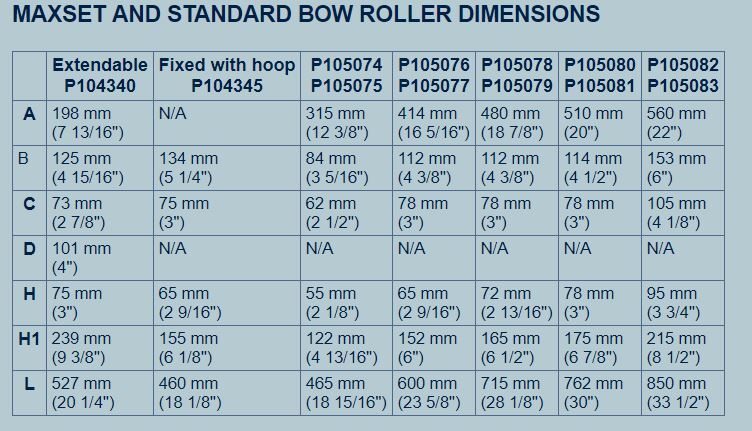

MAXSET AND STANDARD BOW ROLLER DIMENSIONS

	Extendable P104340	Fixed with hoop P104345	P105074 P105075	P105076 P105077	P105078 P105079	P105080 P105081	P105082 P105083
A	198 mm (7 13/16")	N/A	315 mm (12 3/8")	414 mm (16 5/16")	480 mm (18 7/8")	510 mm (20")	560 mm (22")
B	125 mm (4 15/16")	134 mm (5 1/4")	84 mm (3 5/16")	112 mm (4 3/8")	112 mm (4 3/8")	114 mm (4 1/2")	153 mm (6")
C	73 mm (2 7/8")	75 mm (3")	62 mm (2 1/2")	78 mm (3")	78 mm (3")	78 mm (3")	105 mm (4 1/8")
D	101 mm (4")	N/A	N/A	N/A	N/A	N/A	N/A
H	75 mm (3")	65 mm (2 9/16")	55 mm (2 1/8")	65 mm (2 9/16")	72 mm (2 13/16")	78 mm (3")	95 mm (3 3/4")
H1	239 mm (9 3/8")	155 mm (6 1/8")	122 mm (4 13/16")	152 mm (6")	165 mm (6 1/2")	175 mm (6 7/8")	215 mm (8 1/2")
L	527 mm (20 1/4")	460 mm (18 1/8")	465 mm (18 15/16")	600 mm (23 5/8")	715 mm (28 1/8")	762 mm (30")	850 mm (33 1/2")

(990565)

SKU	990565
Model #	P104340
Brand	Vetus Maxwell
Shipping Weight	5.1000kg
Shipping Width	0.200m
Shipping Height	0.200m
Shipping Length	0.600m
Shipping Cubic	0.024000000m3
Unit Of Measure	Each
