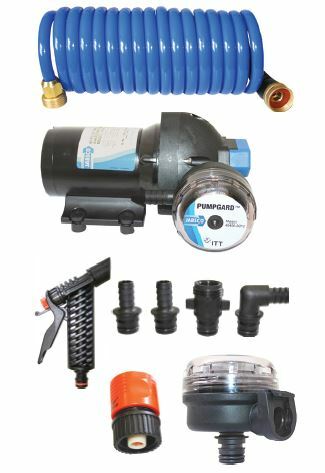

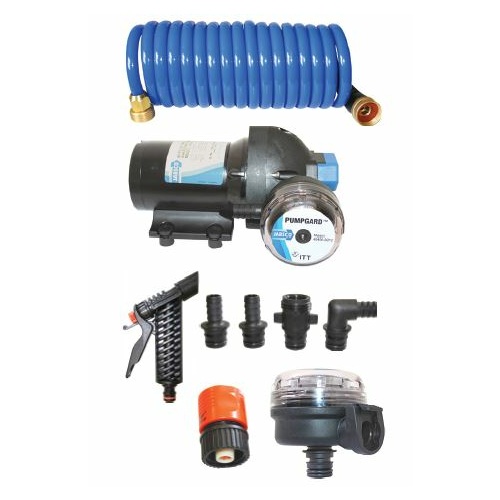

Heavy Duty HotShot 4 Deck Wash Pump Kit with 7.5m Spiral Hose  - 12V Jabsco Par-Max 4.0 - 60 PSI  - J20-262 - Q401J-118N-4A
(Replaces the discontinued J20-162 Jabsco 32900-0092)

Suits 12mm /20mm Hose - 7.5mt spiral hose included.

Ideal for removing mud from the anchor or hosing down the deck or bait board.
Additional, or different size snap in ports are also available.

These new Heavy Duty Hotshot 4 pumps have a four chamber quad diaphragm and heavy duty wider diameter motor with a powder
coated shell, and cast aluminium end bells and lower housing - to improve pressure capability and off er longer life and exceptional performance.

Features:

  • Up to 15.1 litre (4.0 GPM) per minute flow rate
  • 60 PSI high pressure cut out
  • 4 chamber quad diaphram
  • The motor is ignition protected & has thermal overload protection
  • Self priming to 2.4 metres (8 ft)
  • Diaphragm design can run dry for extended periods
  • Spray resistant motor coating IPX6 - NOT waterproof
  • Sealed pressure switch extends pump life
  • 25Ft spiral hose

Includes:

  • Plug-in inlet filter
  • Hose trigger nozzle
  • Standard Australian garden hose connector
  •  USA GHT connector to suit HoseCoil hoses
  •  2 x 12mm
  •  2 x 20mm straight hose barb ports
  • 1 x snap-in port for direct connection to HoseCoil USA threaded hose.
  • 25Ft spiral hose





(990740)

Included in the Box:

  • Plug-in inlet filter
  • Hose trigger nozzle
  • Standard Australian garden hose connector
  •  USA GHT connector to suit HoseCoil hoses
  •  2 x 12mm
  •  2 x 20mm straight hose barb ports
  • 1 x snap-in port for direct connection to HoseCoil USA threaded hose.
  • 1 x 7.5 Mtr (25Ft) coiled hose with brass end fittings.
SKU 990740
Model # J20-162
Brand Jabsco
Shipping Weight 4.0000kg
Shipping Width 0.180m
Shipping Height 0.180m
Shipping Length 0.300m
Unit Of Measure Kit

Limited 3 year Jabsco warranty.
Note:

JABSCO Hotshot deck washdown pumps have splash resistant motors - they will withstand some spray and the occasional splash - but they are NOT WATERPROOF and should be subject to only minimal external water contact.
They should be mounted in the driest location possible and always follow the manufacturers installation instructions.
Warranty is void if the motor is waterlogged - and if a strainer is not used.
A plug-in strainer is provided with every Jabsco Hotshot pump kit.
