Bennett Hatch Lifter Single 610mm 24 Inch Stroke Cylinder Only - 499-HL24C

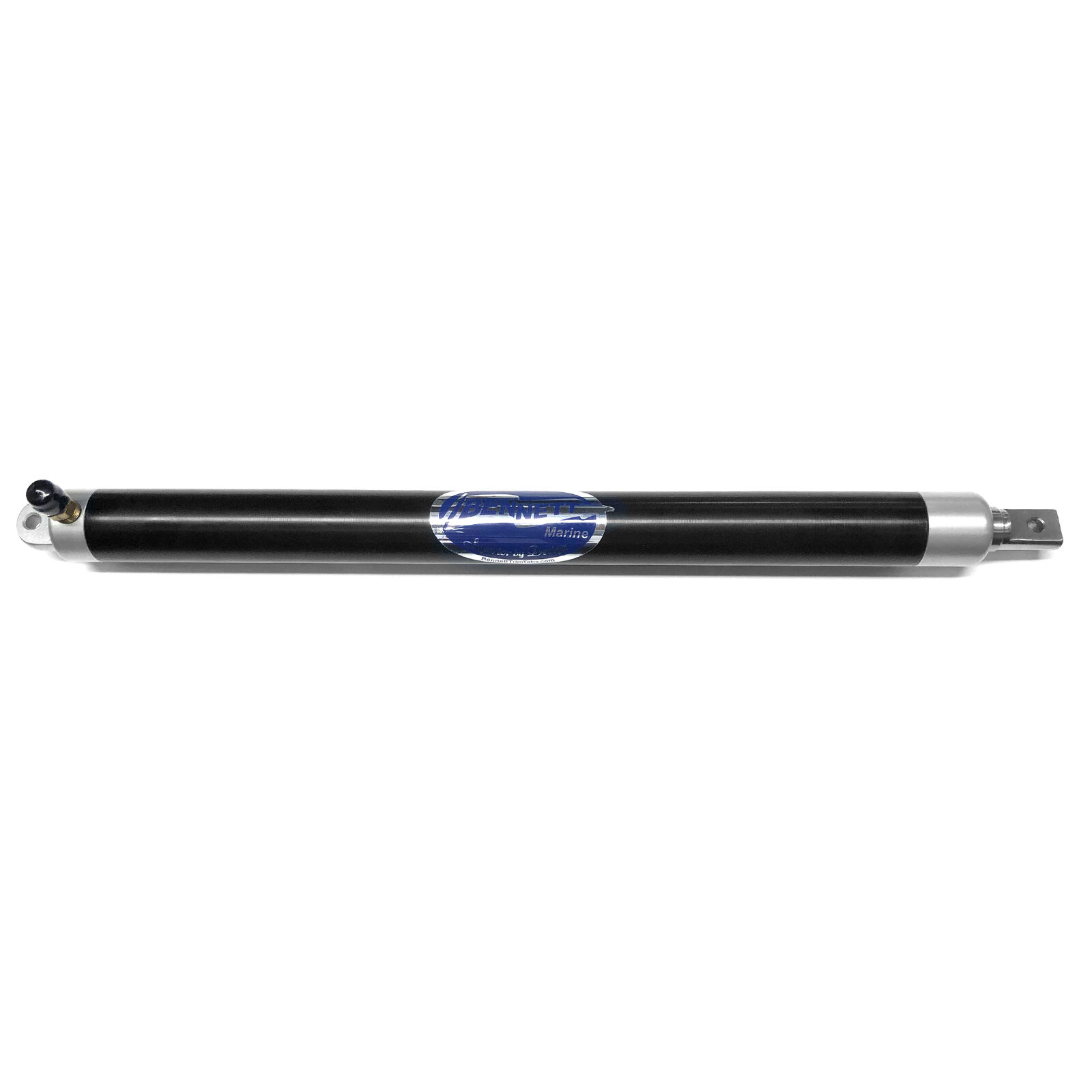

Single action replacement Bennett hatch lifter cylinder with a 610mm (24") stroke.
Note: This is a replacement cylinder only, (a complete sytem requitres a pump too).
There is a fitting at the bottom of the cylinder for the hydraulic line to attach to.

Features:
Max Lifting Force: 275lb
Single acting Return Gravity
Dual Acting Return 200lb
Extension Time 1in/sec @ 200 lbs

Specifications:

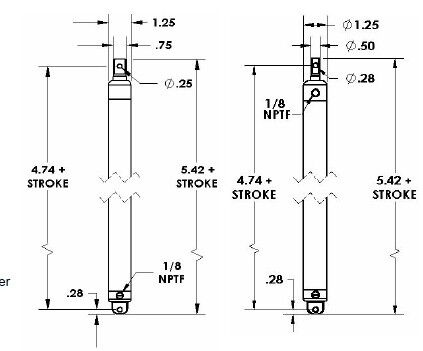

  • Collapsed length 4.74in + Stroke
  • Shaft Dia .75 SA (.5 DA)
  • Outside Diameter: 1.25in
  • Stroke Lengths:  24 Inch

Hydraulics:

  • Working Pressure 350psi
  • Max Pressure 500psi Max
  • Fittings 1/4" Compression Fitting
  • Push-To-Connect (1/4")

(986451)

SKU 986451
Model # RWB1440
Brand Bennett
Shipping Weight 1.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.690m
Shipping Cubic 0.006900000m3
Unit Of Measure Roll
