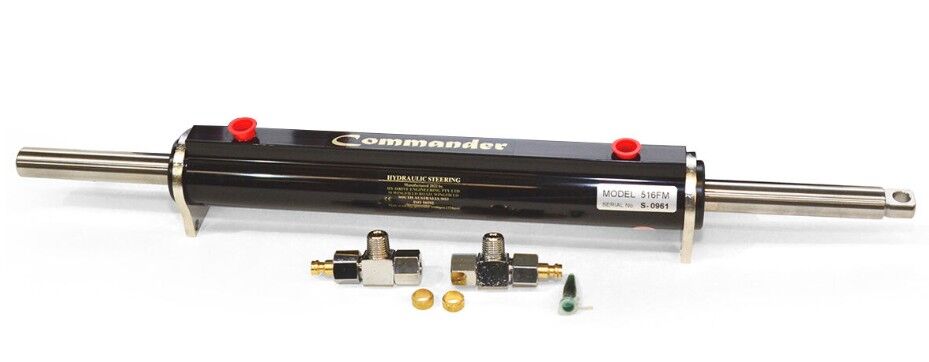

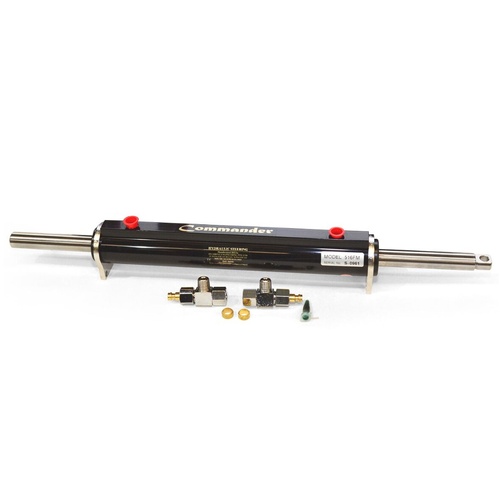

Replacement Hydrive Hydraulic Front Mount Steering Cylinder (Only) for Outboards - 516FM-N8
Suits single outboards upto 235HP or dual (counter-rotating) outboards up to 400HP.
Suits 3/8" nylon tubing.

Can be used as a replacement cylinder for most brands of front mount outboard steering systems.

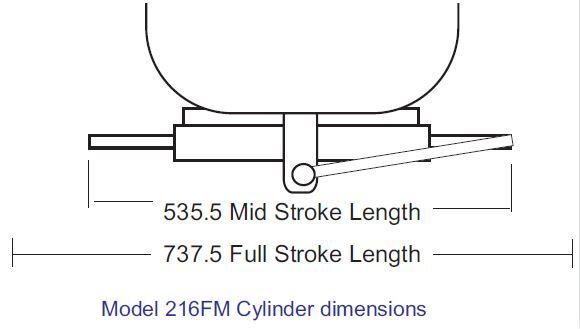

Requires 536 - 738mm width - see attached diagram.
The cylinder requires more room than the bullhorn style cylinder, however the hoses remain stationary making it an ideal choice for wider engine wells.

 Installation is very simple:
The 516FM has an anodised high tensile aluminium body for performance and protection, and precision ground and polished 316 stainless steel piston rods for long life.

Specifications:

  • Capacity:- 137cc
  • Stroke:- 203mm
  • Suits the standard 3/8" nylon tubing - please email Boat Gear Australia if another size tube fitting is required.

(987974)

Practical Tip:

Note: if you have twin cylinders then the cylinder brand and type must be identical.

SKU 987974
Model # 216FM-N8
Brand Hydrive
Shipping Weight 6.0000kg
Shipping Width 0.200m
Shipping Height 0.300m
Shipping Length 0.680m
Unit Of Measure ea

Hydrive 2 Year Warranty
