Hydrive Tiller Arm Offset Bracket - Flat
Suits Series 3 Hydrive Cylinders
Hydrive Tiller Arm Bracket - Standard Flat Version - Series III
Suits Hydrive Bullhorn Series 3 Steering Cylinders
A single bracket link is already included in the Hydrive outboard steering kits - however occassionally you may need to change the bracket - for example if you upgraded your outboard to a different model.
- Flat - 0mm offset
- All three brackets are the same length and have the same hole measurements - it is only the ofset that varies.
- 148mm to the centre of the first hole
- 168mm to the centre of the second hole

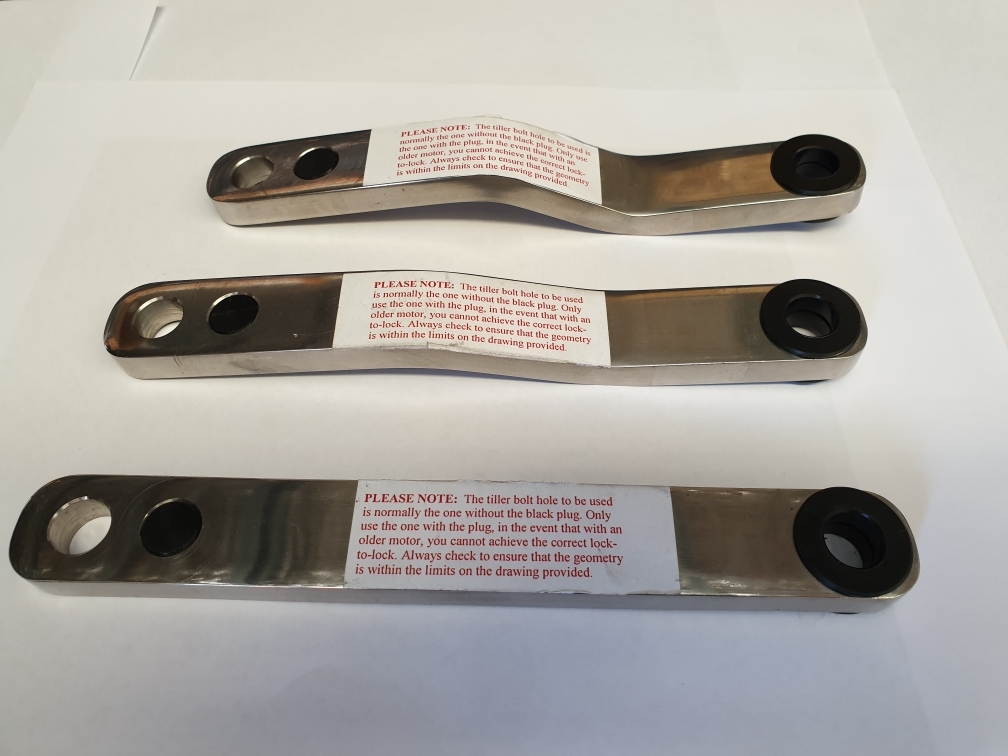

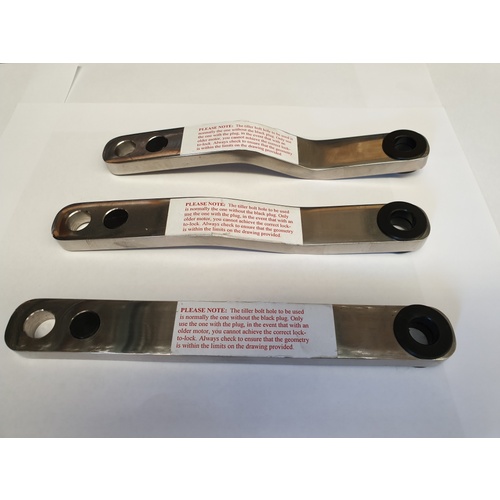

As the picture shows there are three versions of this bracket - they provide different heights (called offsets) when joinng the steering cylinder to the outboard.
Be careful however as, for example just because you have a Mercury engine it may not take a Mercury bracket - use the selection chart. (see PDF to download).
If you are changing your engine consult the engine compatability selection chart to find the correct bracket for your new outboard.
|Unit Of Measure||Each|
Hydrive 2 Year Warranty
