Hydrive Tiller Arm Bracket - Mercury Offset

Suits Hydrive Bullhorn Series 3 Steering Cylinders

A single bracket link is already included in the Hydrive outboard steering kits - however occassionally you may need to change the bracket - for example if you upgraded your outboard to a different model.

Dimensions:

  • 15mmm offset
  • All three brackets are the same length and have the same hole measurements - it is only the ofset that varies.
  • 148mm to the centre of the first hole
  • 168mm to the centre of the second hole

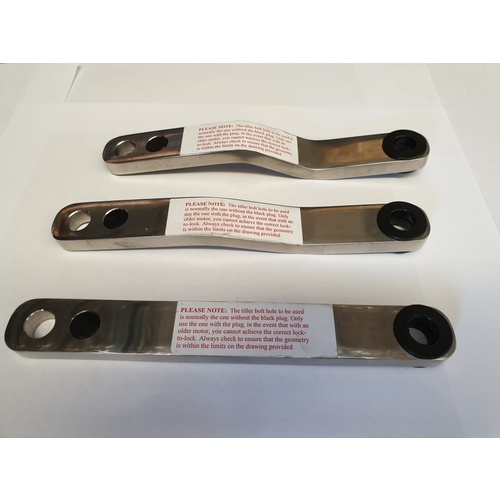

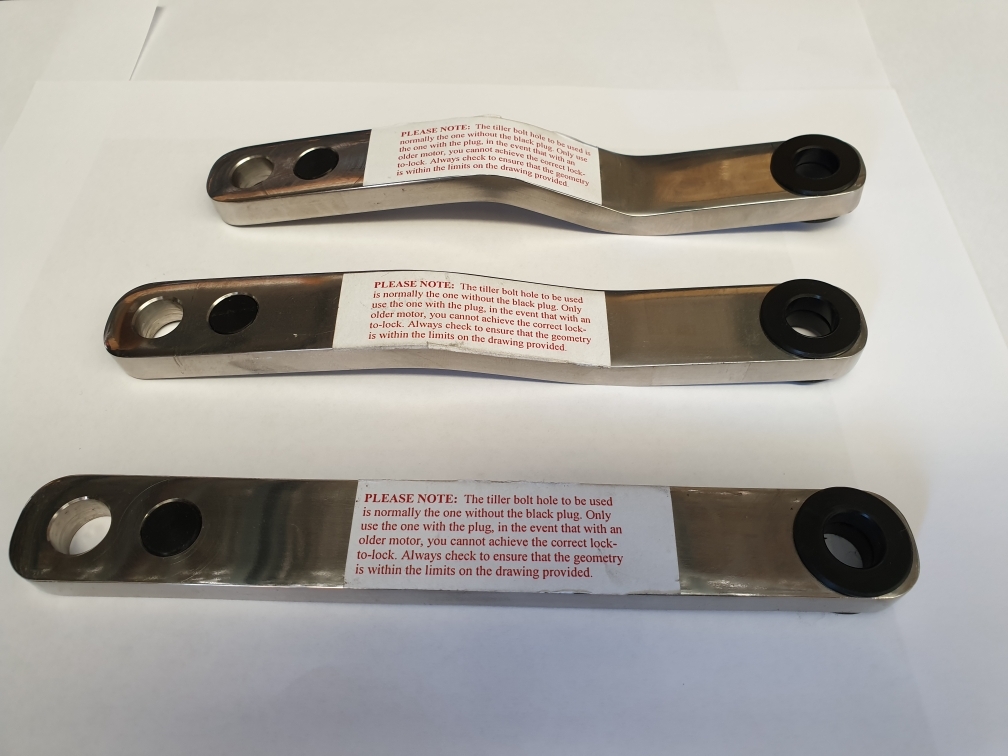

As the picture shows there are three versions of this bracket - they provide different heights (called offsets)  when joinng the steering cylinder to the outboard.

Be careful however as, for example  just because you have a Mercury engine it may not take a Mercury bracket - use the selection chart. (see PDF to download).

If you are changing your engine consult the engine compatibility chart to find the correct bracket for your new outboard.

(990151)

SKU 990151
Model # TA-6178A
Brand Hydrive
Shipping Weight 0.8000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.150m
Unit Of Measure Each

Hydrive 2 Year Warranty
