Lewmar Low Profile Trapezoid Hatch - Size 65 Silver - 609x486x490 Cut Out - Friction Hinge - 170160
Cut Out Size : 609 x 486 x 490mm
Overall Outside Dimensions: 560 x 675 x 560mm
Ideal as a foredeck hatch on larger cruisers and offshore yachts.
Manufactured to exacting standards, the Lewmar® Low Profile range provides a smooth profile with modern lines.
The Lewmar® range features industry leading construction and are manufactured from silver anodised extruded aluminium fitted with quality acrylic lenses ranging in thickness from 8mm to 12mm.
Lewmar® Hatch - Low Profile The Low Profile hatch range features a snag free soft styling which presents a sleek modern look.
The low profile hatch range is ideal for use on a wide range of power craft and yachts.

Ideal as a foredeck hatch on small to mid size power and sailboats.

Features:

  • Outside handles
  • Low profile hatches open up to 180 Degrees
  • Ability to lock the hatch fully closed or in the vented position
  • Ability to quickly and easily replace acrylic lens -
  • Friction levers hold the lid open in any position up to 95°
  • Anodised aluminium frame for corrosion resistance
  • Curved upper frame for strength as well as modern styling -
  • Lewmar's unique sealing system allowing easy acrylic replacement
  • CE approved to Area 2A

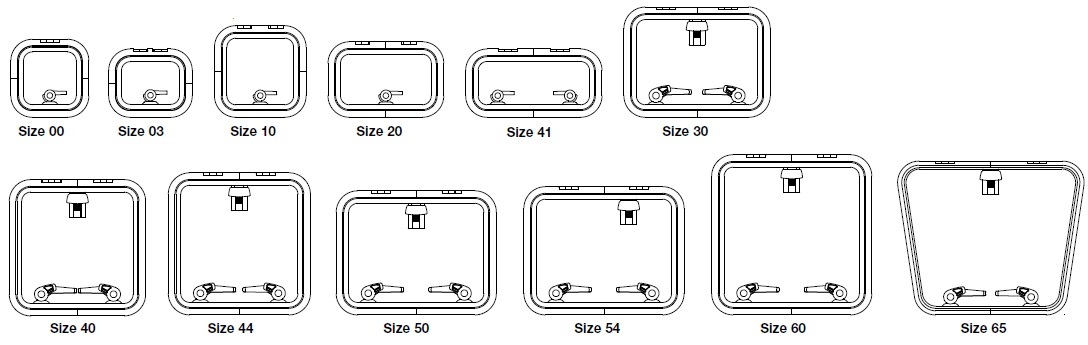

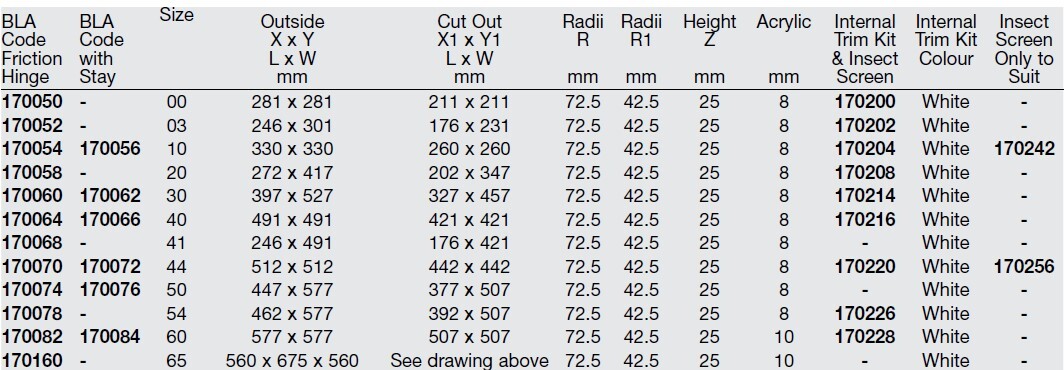

Dimensions: (use with the dimensional drawing pictures above)

  • Cut Out Size : 609 Aft Width x Forward Width 486 x 490 (For and Aft) - Trapezoid shape - see drawing above.
  • Overall Outside Dimensions: 560 x 675 x 560mm
  • Height: 25mm
  • Radius R: 72.5mm
  • Radius R1: 42.5m
  • Acrylic Thicknes: 10mm

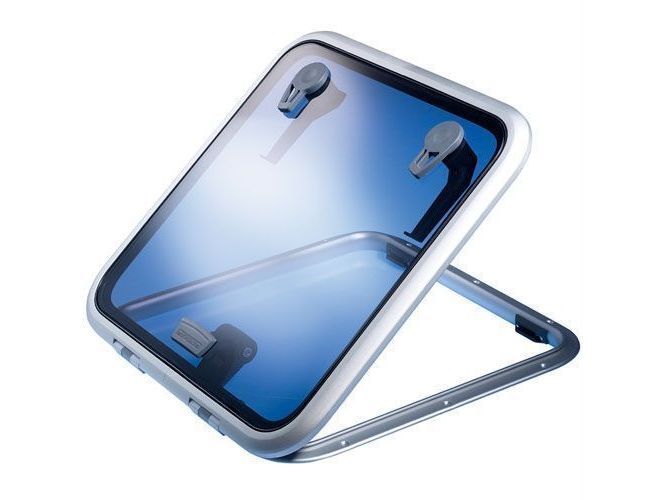

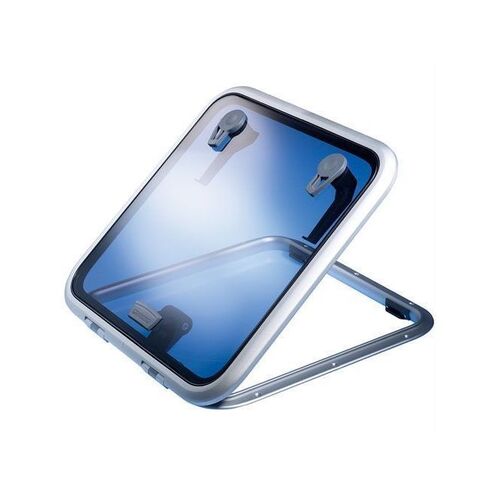

(Note 1st Picture is of square hatch not this trapezoid shape hatch see drawing and 2nd pic for shape).

Mounting Instructions:
Fit to a flat surface with a maximum tolerance of +/- 1mm.
Fastening size at hinge section use (M6 / 1/4").
Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Surface must not flex if it does make a frame.

(993379)

SKU 993379
Barcode # 743683107238
Brand Lewmar
Shipping Weight 9.0000kg
Shipping Width 0.600m
Shipping Height 0.100m
Shipping Length 0.700m
Shipping Cubic 0.042000000m3
Unit Of Measure Each
