Maxwell P101624 Gearbox Top Parts Kit - P101624
Suits Freedom,1000,1500, RC8, RC10 Anchor Winches

Maxwell service kit with common top parts ofor serving the gearbox.

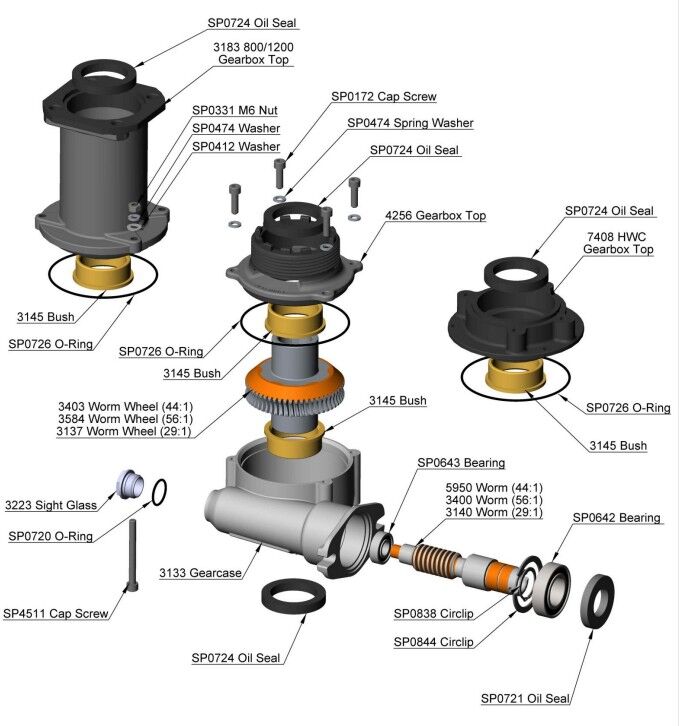

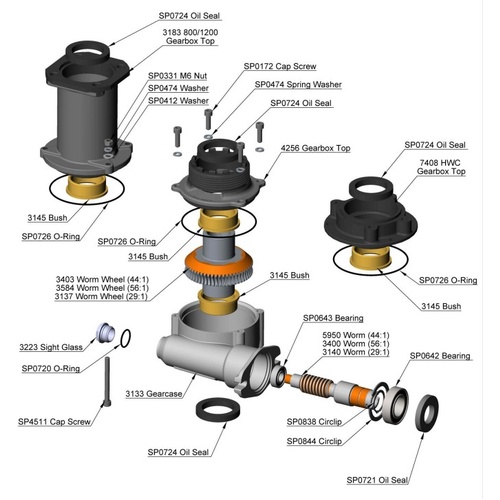

See above diagram and note which parts are supplied (ONLY the parts listed below).

Includes:

  • 4256 Gear box top
  • 3145 bush
  • SP0724 Oil seal
  • SP0726 O ring
  • SP4511 Cap screw
  • SP0331 M6 nut
  • SP0412 Washer
  • SP0474 Washer

Note: It is common requirement to replace the gearbox top as the housing for the output shaft seal becomes corroded, kits are available for this purpose:  - to suit P101624 - suits 1000, 1500, Freedom, RC8, RC10 As previously noted the fastening of the two halves of the gearbox was changed with outsourcing.
Only the later outsourced type is held as a spare part however with the addition of 4 x longer cap screws, nuts and washers (included with the kits) these gearbox tops can be fitted to earlier type gearboxes





(986894)

SKU 986894
Model # SP0663, SP663
Brand Vetus Maxwell
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.120m
Shipping Cubic 0.001200000m3
Unit Of Measure Each
