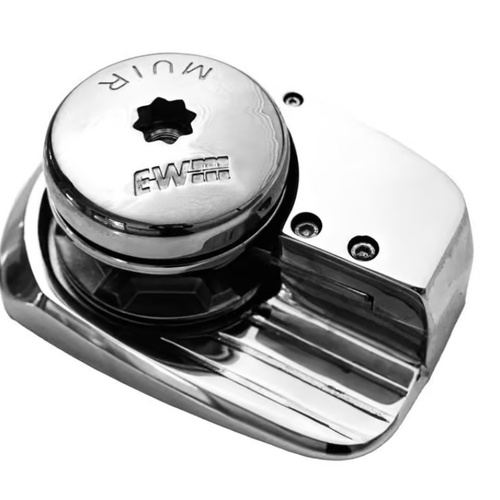

Muir V900 Storm Vertical Winch 6mm 900W -12V Chain Only Suits Most boats up to 6 to 11m F551006

Muir V900 Storm Vertical Winch - 6mm 900W 12V Chain Only F551006
Suits Most boats up to 6 to 11m
Suits 6mm SL Chain only.

Suits:

Suits Most boats up to 6 to 11m (19 - 36Ft)
6mm SL Chain only (not suitable for rope).
12V DC Power Supply

Dimensions: See the deck plate dimensional drawing PDF above.

Specifications:

Power Supply: 12 (DC)
Motor: 900 (Watts)
Max Load: 300kg
Work Load: 100kg
Amps Work Load: 80A (12V)
Recommended Circuit breaker: 100A
Max Line Speed: 23m/min
Chain Size: 8mm SL
Rope Size: NA
Net Weight: 9Kgs

Features:

Polished 316 stainless steel
Heavy duty marine grade, dual direction motor in 12V DC,
Stainless steel shaft
Stainless steel mounting bolts
Shaft seal
Lubricating grease nipple
Clutch release handle
REVERSING SOLENOID KIT F801174 (2/4 Pole 12V), 1 x deck switch and a helm switch included.
Emergency crank/clutch release handle
Installation/operation booklet

Note: This winch is NOT compatable with Auto Anchor chain counterss and controls.

See the What's in the Box Tab for detailed list of contents.

(984493)

What's In the Box?

Anchor Winch with gearbox
Chainwheel/gypsy to suit 8mm chain only.
100A Circuit breaker
1 x deck switch
1 x helm up/down control switch (F801087)
REVERSING SOLENOID
Emergency crank/clutch release handle (included)
Deck bolts
Owners Installation manual with
- deck template,
- wiring instructions and
- installation instructions.

Other Accessories:

Browse the "Anchor Winch Electrical Accessories" category of this website for additional optional accessories such as extra deck swithes etc.
Browse the "Additional Hardware Accessories" for items such as snubbers - (see the left hand menu).

Important: Muir windlasses must be used in conjunction with a chain stopper or alternative snubbing device to take the load off the windlass while laying at anchor. the chain stopper and alternative snubbing system should also be used to secure the anchor in the fully raised position while under way.

Tips and Practical Advice:

This winch is NOT compatable with Auto Anchor chain counterss and controls.

Muir anchor winches can easily be shipped to most of Australia - refer to the freight calculator.
We prefer a business address if possible - (someone will need to be present to sign for the delivery).

SKU	984493
Model #	VR600 - F101003-12V
Brand	Muir
Shipping Weight	10.0000kg
Shipping Width	0.320m
Shipping Height	0.230m
Shipping Length	0.360m
Shipping Cubic	0.026496000m3
Unit Of Measure	Each
