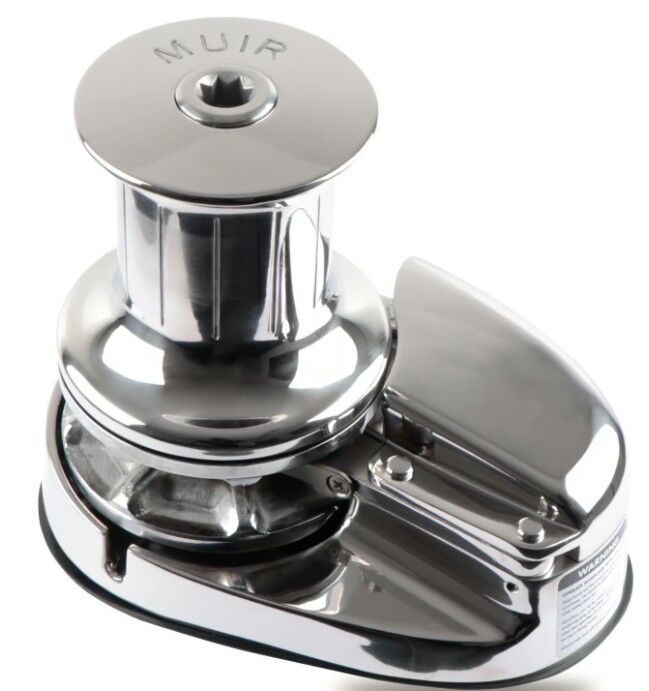

Muir VRC3500 Storm w Capstan 10mm 1700W 24V Anchor Winch Windlass with RCMS

Muir VRC3500 Storm 10mm 1700W 24V Anchor Winch with Capstan and RCMS - F101164
Suits: 10mm SL Chain - 24 VOLT

Suits:

Suits Most boats up to 15-24m (48-77Ft)
10mm SL Chain only
24V DC Power Supply
Deck Clearance: 50mm (optional deck extension kits available on request).

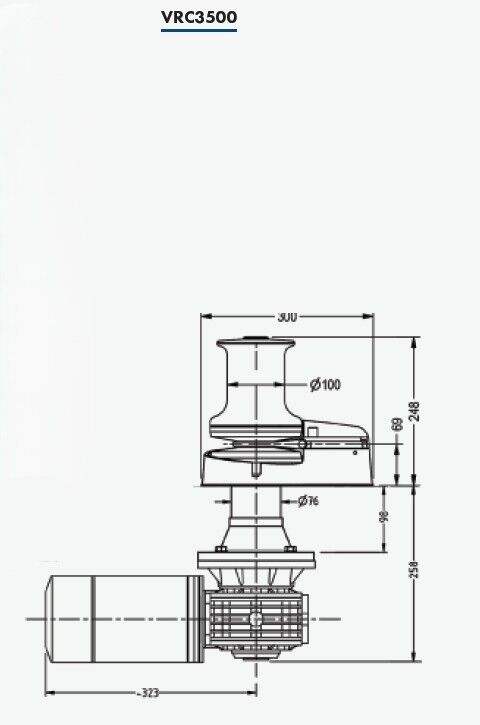

Dimensions and Drawings: are in the dimensional drawing picture above.
There is also a deck template PDF above - although it is not actual size.
Specifications:

Power Supply: 24V (DC)
Motor: 1700 (Watts)
Max Load: 1650kg (3637lb)
Work Load: 550kg (1212lb)
Amps Work Load: 90A for 24V
Max Line Speed: 28m/min (92ft/min)
Max Deck thickness: 50mm (Contact Us if you need more).
Chain Size: 10mm SL
Rope Size: 16mm
Net Weight: 42Kg

Features:

Polished stainless steel components
High tensile stainless steel shaft
Heavy duty, marine grade, dual-direction motor
Superior, heavy-duty Oil bath worm drive gearbox
Rope Chain Management System (RCMS)
Quick-Access Chain Pipe Cover
Self-lubricating bush
Capstan models feature a knurled grip
Independent gypsy and capstan operation
Suits multiple global chain standards - please advise your chain size.
Auto anchor compatible.

Includes:

Deck Isolation Pad
Stainless steel mounting bolts
Shaft seal
Self lubricating bush
Clutch release handle
1 x Deck switch
1 x 150A circuit breaker
Installation/Operation booklet

(987323)

What's In the Box?

Anchor Winch with capstan and gearbox
Rope chain combination gypsy for rope and chain combination or chain only
100A Circuit breaker with up/down panel switch
1 x Deck switch. Note you will need 2 deck switches so add another one - see below.
Emergency crank/clutch release handle (included)
Deck bolts/studs and fasteners
Owners Installation manual with
- deck template,
- wiring instructions and
- installation instructions.

You will also need:

A correctly sized, solenoid and a second deck switch - see related products below.

Other Accessories:

Browse the "Anchor Winch Electrical Accessories" category of this website for additional optional accessories such as remote controls and anchor chain counters.
Browse the "Additional Hardware Accessories" for items such as snubbers - (see the left hand menu).

Important: Muir windlasses must be used in conjunction with a chain stopper or alternative snubbing device to take the load off the windlass while laying at anchor. the chain stopper and alternative snubbing system should also be used to secure the anchor in the fully raised position while under way.

Muir anchor winches can easily be shipped to most of Australia - refer to the freight calculator.
We prefer a business address if possible - (someone will need to be present to sign for the delivery).

SKU	987323
Model #	VR3500
Brand	Muir
Shipping Weight	55.0000kg
Shipping Width	0.700m
Shipping Height	0.600m
Shipping Length	0.700m
Shipping Cubic	0.294000000m3
Unit Of Measure	Kit
