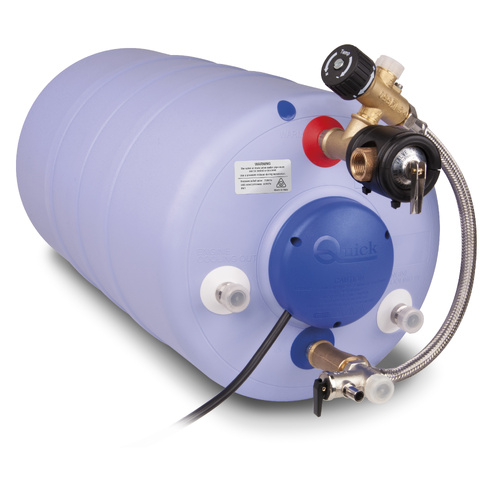

Quick 30L B3 1300W 240V Hot Water Heater Nautic Boiler - FFLB33013S000A01
Also known as a Quick Nautic Boiler 30 Litre

This B3 range have a blue, tough composite exterior with a high quality AISI 316 stainless steel tank inside.
This is a practical combination, as the composite won't corrode or discolour, and the stainless steel tank is best for longevity.

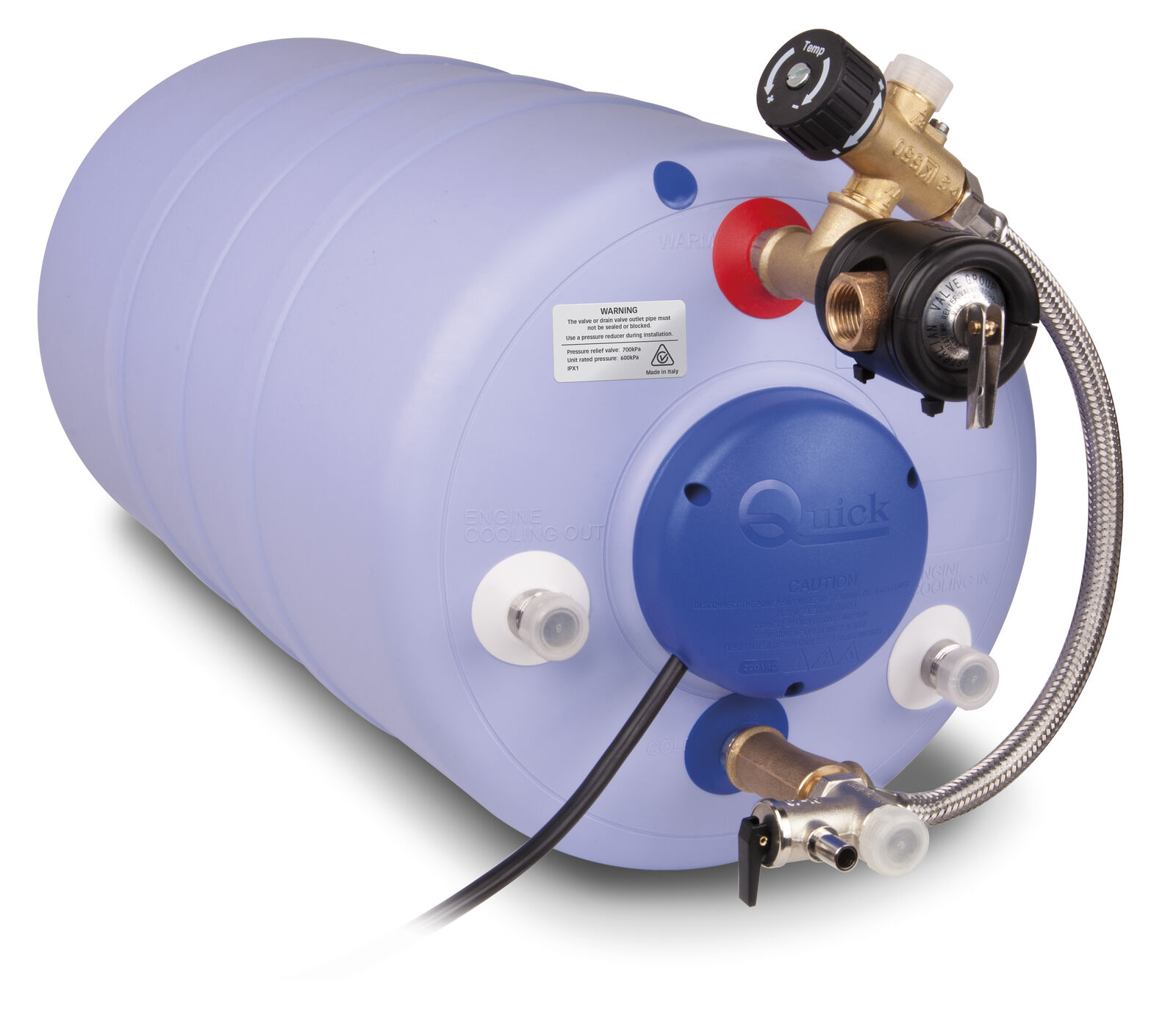

These B3 water heaters include the water heater with a fully approved, fitted  thermostatic mixing valve and pressure relief valve.

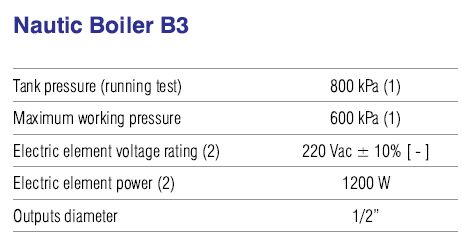

They also include a  powerful 1200W element and 316 stainless steel mounting brackets.
Fully  Australian Approved.

(Note Conversely, the Quick BX model range (with a stainless steel outer) are not approved for Austalia).

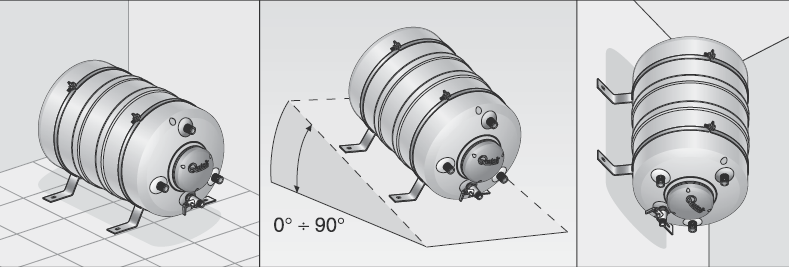

Quick B3 water heaters may be mounted up to 90 degress angle 9see diagram example above).

Nett Weight: 10.5Kgs

Dimensions:

Note: The dimensions for these Australian water heaters differ from the water heater dimensions for the rest of the world.
The Australian version has the thermostatic mixing valve and pressure relief valve fitted. This is the why the hot water systems are longer than what is stated in the catalogue.
Many Australian retailers show incorrect dimensions.

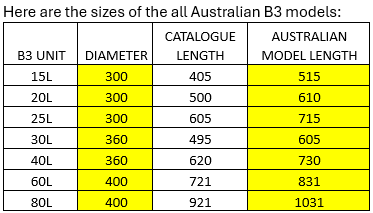

Below are the correct OVERALL dimensions for the Australian Approved B3 range of water heaters including the fittings:

(988407)

SKU 988407
Model # 14122A
Brand Quick
Artist / Author Ruth Cunningham
Shipping Weight 13.0000kg
Shipping Width 0.450m
Shipping Height 0.450m
Shipping Length 0.720m
Shipping Cubic 0.145800000m3
Unit Of Measure Each

3 Years Quick manufacturer's warranty plus Boat Gear Australia's Australian fair Trade warranty.
