Optional Roller Extender Kit (Model 083) for L&R Boat Latch Kits

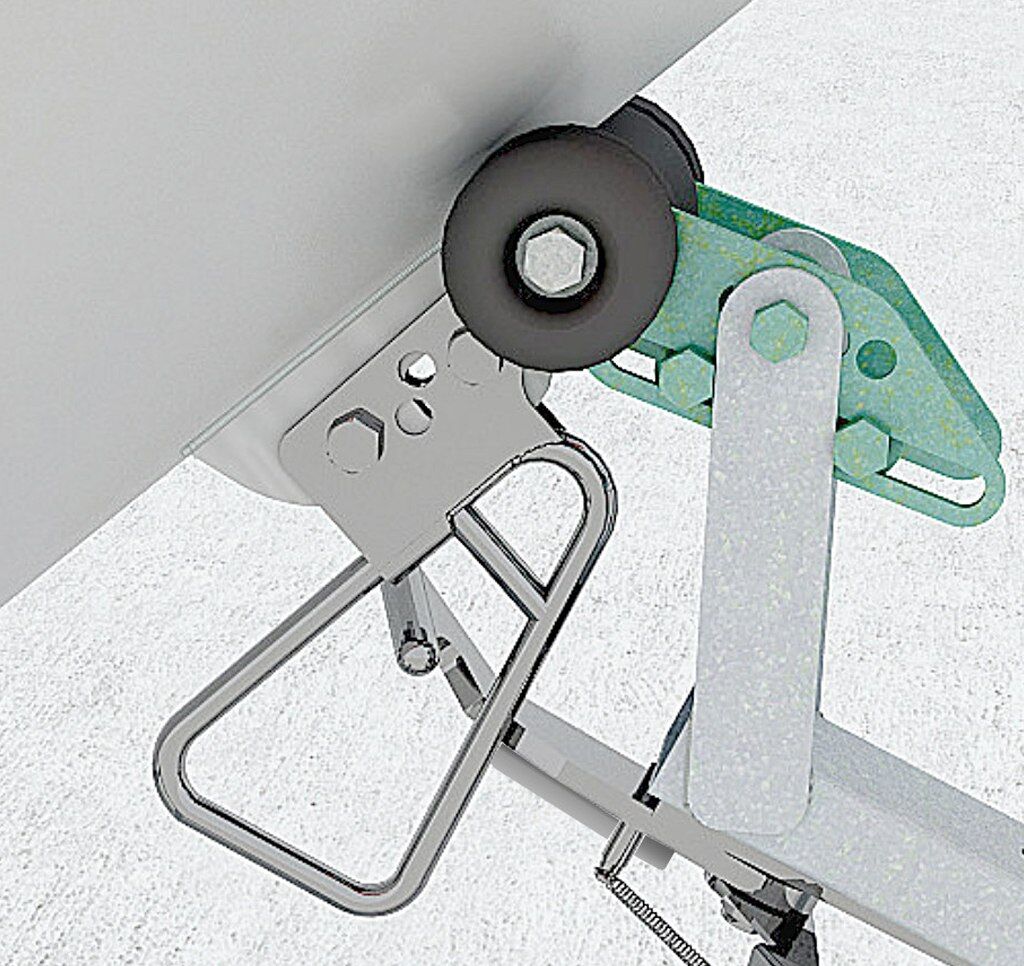

This L&R Roller Extender Kit (which is illustrated in green on the attached picture) will suit all the L&R launch and Retrieve Boat Latch Kits.
It is used where the roller needs to be able to project out further to the bow. It is commonly required on Towing Eye (Aluminium) boats.
As there are lots of different trailer winch posts - this kit offers a quick fix without cutting, boring or welding if your Boat Latch Kit doesn't fit.
There are 4 adjustment horizontal positions. The bolts locate in one of these and the other pair of bolts go in slotted holes, allowing the
roller/wedge to swing up/down for vertical adjustment.
The 2 lower bolts are fixed so that the bolt or nut heads are located against the vertical Roller supports of the winch platform, as shown, limiting movement.
