Sant Marine Polyethylene V Sahped Fuel Tank 70 Litre - 11-380

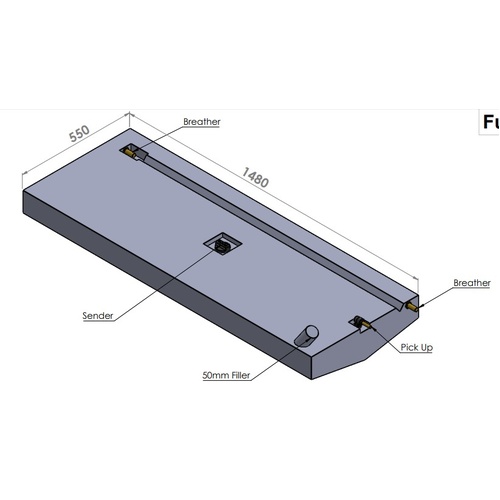

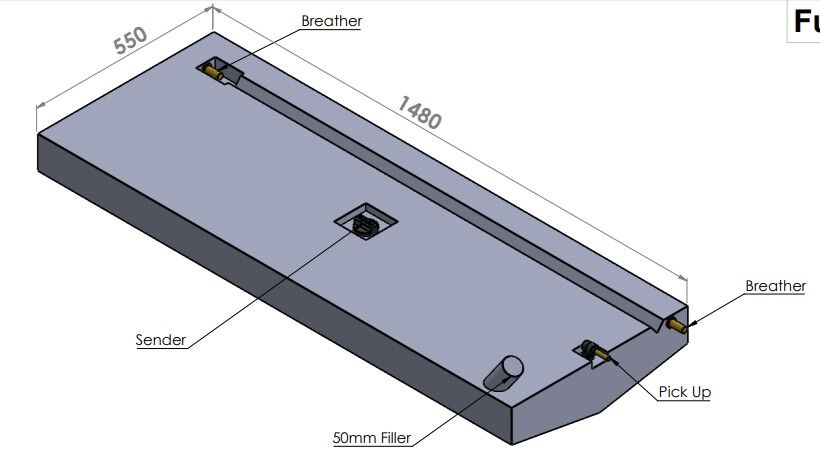

Tank Size: 70 Litre - 1480L x 550W x 150mm High - plus fittings.

70 ltre V shaped boat fuel tank used in many trailerboats such as Whitley 550 etc.
Please measure and double check carefully before ordering.

Sant Marine fuel tanks fully comply with Australian regulations.
They are manufactured from durable polyethylene, pressure-tested, and conform to the internationally recognized ISO 10088 standard for small craft fuel systems.
Tanks are fitted with a 30-240OHM rated Fuel Sender, they include a 10mm Fuel Pick Up and 16mm Breather Fittings.  Most tanks are moulded with internal baffles to stabilise the fuel during motion.

Remember to Allow for Expansion:
Polyethylene fuel tanks are subject to expansion of 3% in all directions within a month after first filling with fuel.
Allow 5-6mm on all dimensions. For example, a tank of dimensions 1200mm x 500mm x 200mm will require a cavity of at 1236mm x 515mm x 206mm. After expansion, the tank will not shrink again.
Do not foam the tank or restrict its ability to expand.

Please take time to read the PDF above for important Installation Safety Tips.

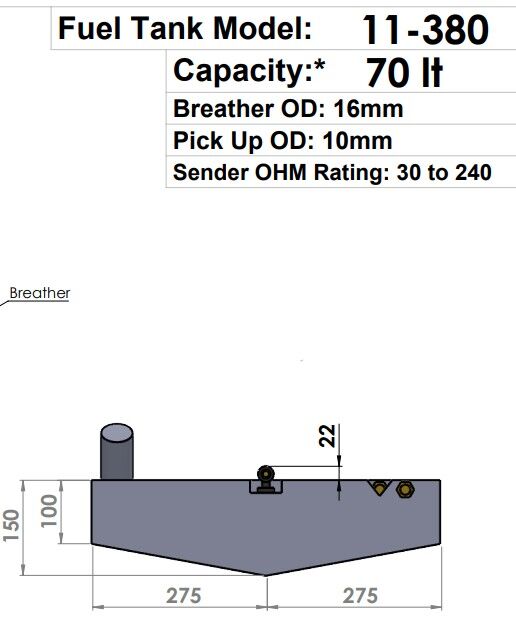

Dimensions:

• Tank Capacity: 70 Litre
• Length: 1480mm
• Width: 550mm
• Height: 150mm +plus fittings
• Breather: 16mm
• Pickup OD: 10mm

Safety Notes: see above PDf for details.

• Polyethylene fuel tanks are subject to expansion of 3% in all directions within a month after first filling with fuel. Do not pack with foam or restrict expansion.
• Support: The area beneath the tank must be entirely flat, smooth, and completely support the bottom surface. [1]
• Strapping: If using metal (stainless steel or aluminum) straps, rubber or neoprene padding must be used where the strap touches the tank. [1]
• Hose Connections: All hoses connecting to breathers, pickups, and fillers must be double clamped. [1]
