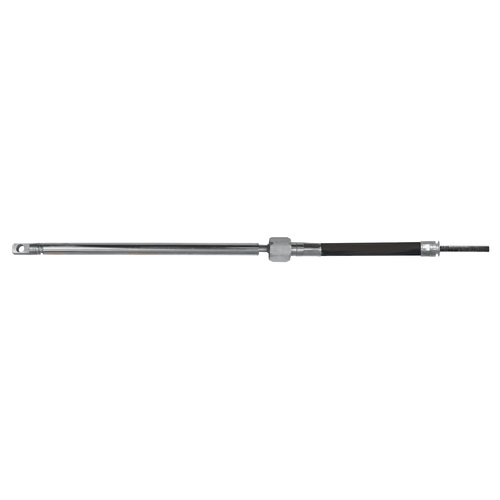

Replacement Steering Cable - 18FT - 5.49m - Multiflex RWB 7610

These Multiflex push pull cables are compatible with most Teleflex and Ultraflex helms and cables, as well as fitting some other brands too.

Multiflex steering cables are quick connect steering cables with stainless steel ends which enable the cable to be attached directly to the tilt tube on all popular brands of engines.
It has a minimum bend radius of 200mm and a stroke length of 228mm.

How to Measure Steering Cable Lengths:

  1. Add A + B + C and subtract 100mm for each 90 degree bend in the cable.
    (Refer to the attached diagram picture - note C is only half the boat width - measure from the side of boat to the centreline of the boat only).
  2. For installation through the engine tilt tube, add 305mm (1 ft) to the measure calculated above
  3. When measuring cable length in millimetres (mm) divide by 305 to convert to feet) and then round up to the next whole foot.





(992121)

These steering parts can easily be delivered throughout Australia.

SKU 992121
Model # RWB7600
Barcode # 9324608011680
Brand Multiflex
Shipping Weight 5.1000kg
Shipping Width 0.100m
Shipping Height 0.550m
Shipping Length 0.550m
Shipping Cubic 0.030250000m3
Unit Of Measure Kit
