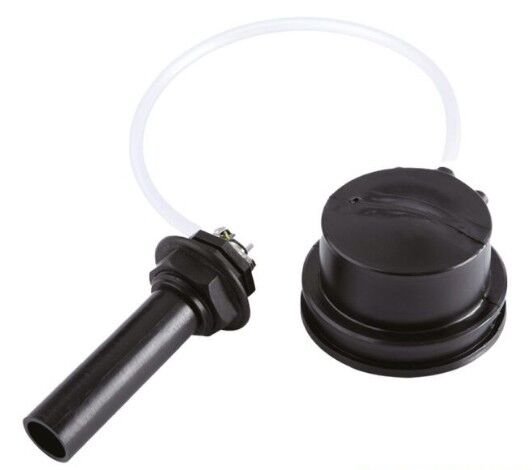

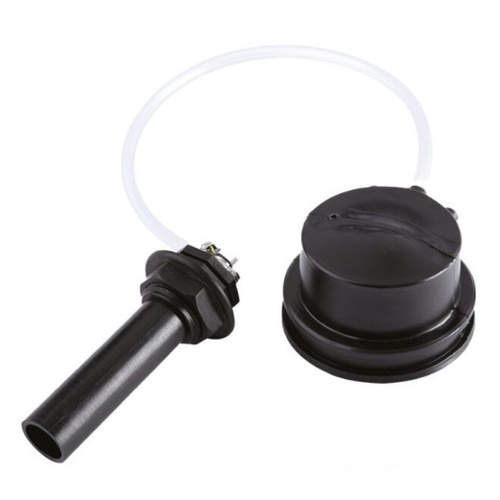

Tecma Pneumatic Waste Tank Sensor  T-PF.P07  - 4472500

The Tecma pneumatic sensor senses when the maximum level of black water tank has been reached.
Designed for moitoring black water tank levels, it can be used with any Tecma toilet control panel.

The pneumatic tank sensor measures the back pressure of air pumped through a small tube inserted into the tank, providing accurate, and reliable readings of fluid depth.

Technical Information: The pressure switch sensors can run with any Tecma panel.

  • The sensor can be single or double.
  • In case of a standard control panel is installed, the sensor can be connected directly to the control panel.
  • In case of a premium control panel is installed, the sensor must be connected directly to the STA (single toilet adapter).
  • They are connected to the control unit with the grey/black wire (two-level version: red / black and white / green).

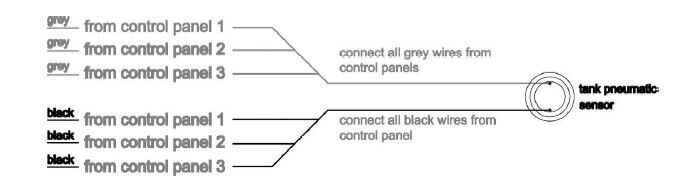

  • In the presence of several control units on board, you must wire all the control units together before connecting the sensor. See fig. as example...

Please read the Tecma Toliet installation manual to avoid problems.
 (You may Contact Us for a copy).



(986993)

SKU 986993
Model # 58240-3012
Brand Tecma
Shipping Weight 4.9000kg
Shipping Width 0.280m
Shipping Height 0.280m
Shipping Length 0.380m
Shipping Cubic 0.029792000m3
Unit Of Measure ea
