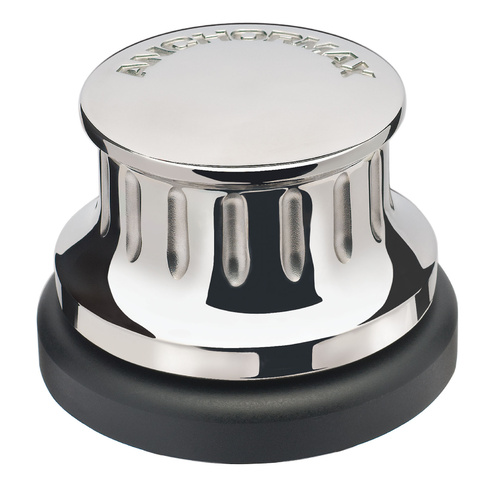

Anchormax Capstan 24V 500W - P102535 - Max Rope Diameter 14mm

An extremely versatile vertical capstan or general purpose electric winch for use as an anchor winch, pot hauler or davit winch.

  • The ANCHORMAX™ has an extremely high power to weight ratio.
  • The compact, fully sealed gearbox is driven by a vertically mounted,
  • Permanent magnet motor. Intrusion below decks is minimised making the design ideal for boats from 5m (16ft) to 10m (32ft). Fitting to the boat is simplicity itself as no dismantling of the winch is required.
  • The ANCHORMAX™ gear housings are marine-grade alloy and the drum is stainless steel. It is supplied as a single direction (clockwise) unit, complete with deck switch, fastenings, template and fitting instructions.
  • The ANCHORMAX™ is not recommended for use to haul halyards. The ANCHORMAX™ is not recommended for use to haul chain.
  • Recommended maximum rope diameter is 12mm.

(990466)

Cable sizes:

  • Up to 5m run use 15mm2 cable
  • 5m to 10m run use 25mm2 cable
  • over 10m run use 35mm2 cable
SKU 990466
Model # P102535
Brand Vetus Maxwell
Shipping Weight 7.1000kg
Shipping Width 0.250m
Shipping Height 0.370m
Shipping Length 0.370m
Unit Of Measure Each

Vetus Maxwell 3 Year Warranty*
