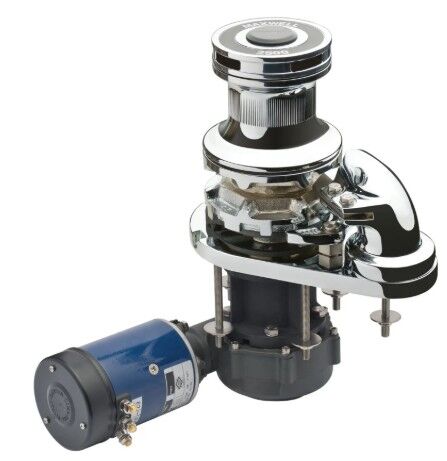

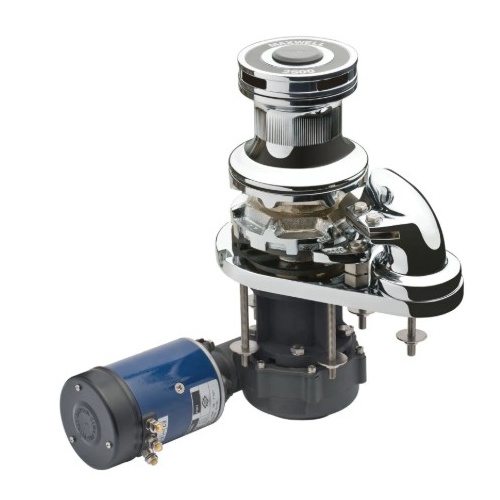

Maxwell VWC1000 8mm w Capstan 1000W 12V P102717-8mm Anchor Winch

Vetus Maxwell VWC1000 Winch with Capstan 1000W 12V - P102717 - 8mm SL

Suits:

MMost boats 8m to 14m (27Ft to 46Ft)
8mm SL Chain (all chain only).
12 Volt
Clockwise Model
Maximum 100mm Through Deck Clearance

The VWC Series is designed for automatic vertical handling of chain-only anchor rodes while offering an independent capstan for the retrieval of a secondary rope and chain rode or to assist with docking or a second anchor.

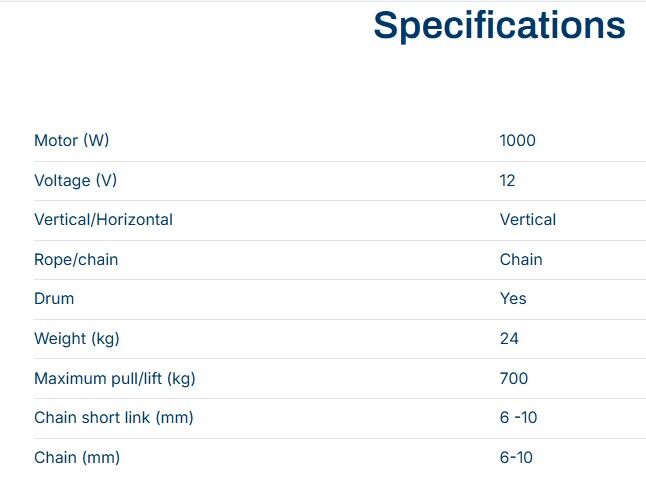

Specifications:

Motor: 1000W 12V
Rope Size: No
Chain Size: 8mm
Maximum Pull Lift: 700 kgs
Static Hold: 1500 kgs
LIne Speed: Chain 18m/min (59ftm/minute)
Net Weight: 24 kgs

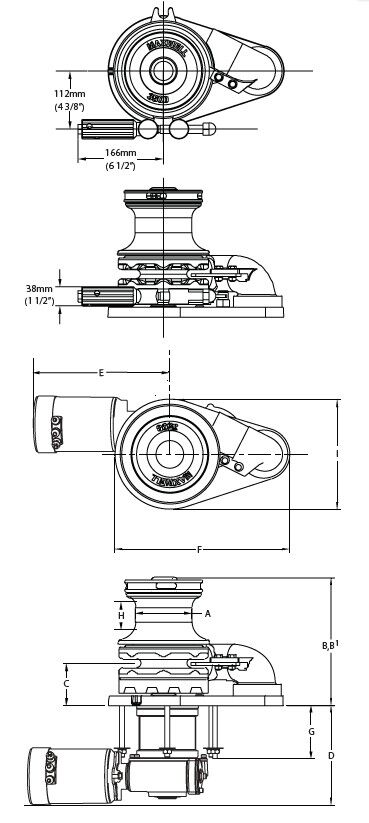

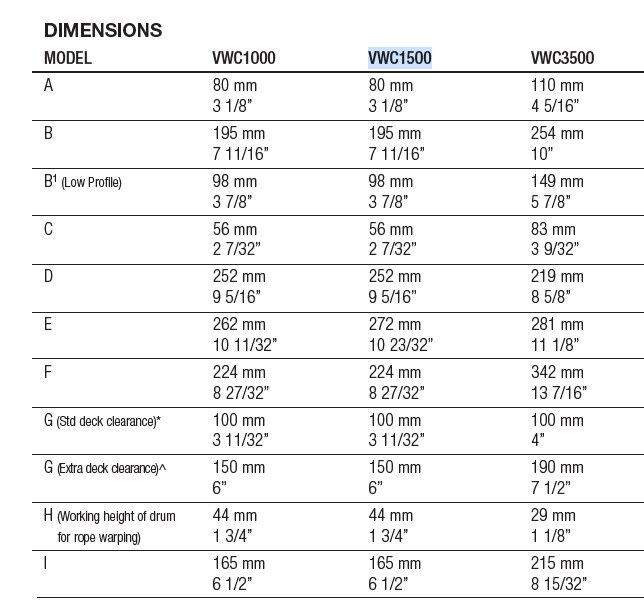

Maximum Through Deck Clearance (G): 100mm

Features:

Fully automatic single or dual direction chainwheel operation
Manufactured from marine grade stainless steel (AISI 316)
Integral chain pipe and stripper are aligned for virtually jamfree operation providing automatic feed of chain into and out of the anchor locker.
Cone-type brake/clutch mechanism permits manual ‘free fall’ anchoring.
Cone clutches, unlike dog clutches, provide smooth progressive engagement ensuring safe, precise control.
Chainwheel locking pawl
Clutch disengagement of the chainwheel enables independent rope hauling from any direction, using the warping drum for positive control of all ropes
Simple through deck installation by modular design and precise alignment of gearbox to the topworks utilising marinegrade stainless steel (AISI 316) bolts
Anodized aluminium gearbox and spacer tube on all models.
Heavy duty, dual direction motor made specifically for marine use.
Dual direction solenoid (included)
Emergency crank/clutch release handle (included)

(986121)

What's In the Box?

Anchor Winch with gearbox
Chainwheel (suits chain only).
Dual direction solenoid (included)
Emergency crank/clutch release handle (included)
Owners Installation manual with
- deck template,
- wiring instructions and
- installation instructions.

You will also need:

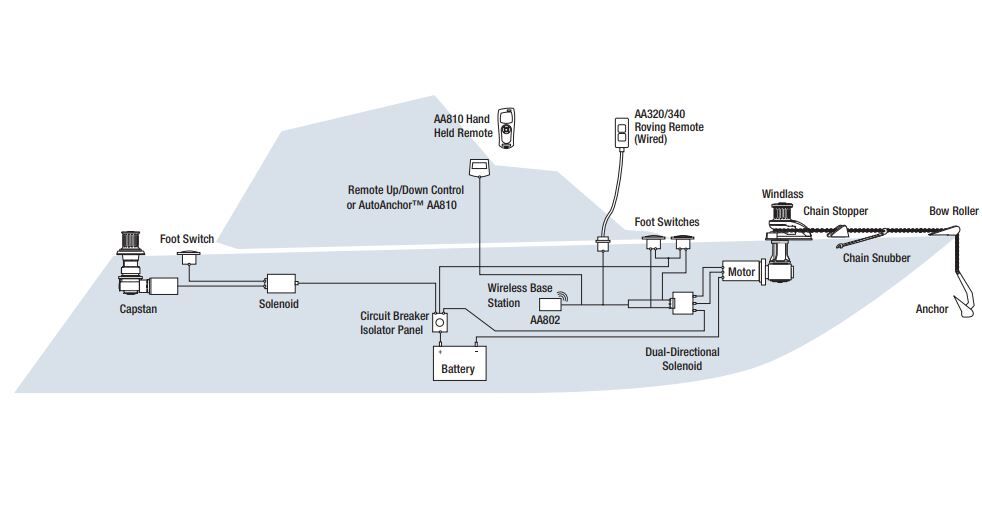

A correctly sized, circuit breaker and either two deck switches, and/or a panel up/down switch.
(See Related Products shown below)

Other Accessories:

Browse the "Anchor Winch Electrical Accessories" category of this website for additional optional accessories such as remote controls and anchor chain counters.
Browse the "Additional Hardware Accessories" for items such as snubbers - (see the left hand menu).

Important: Maxwell windlasses must be used in conjunction with a chain stopper or alternative snubbing device to take the load off the windlass while laying at anchor. the chain stopper and alternative snubbing system should also be used to secure the anchor in the fully raised position while under way.

Tips and Advice:

WHAT WINCH PULL CAPABILITY WILL I NEED?
The only meaningful way to rate anchor winch performance is by looking at what it will lift and at what speed.
The two things to consider are (a) the maximum pull capability and (b) the working load of the winch.
Maximum pull (sometimes referred to as stall load) is the maximum short term or instantaneous pull of the winch.
Working load is generally rated at about one third of the maximum pull and is usually considered to be the load that the winch is pulling once the anchor is off the bottom.
To determine your required maximum pull capability, complete the calculation below.
