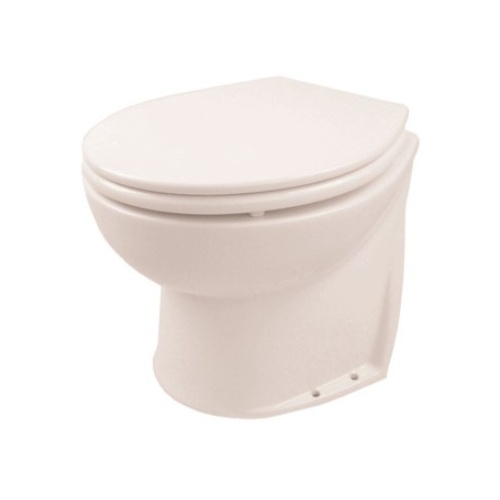

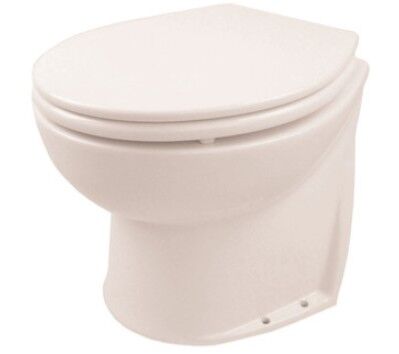

Compact Standard Height Toilet Jabsco Fresh Water Deluxe Silent 12V J10-144 Vertical Back Jabsco 58080-1012

• Vertical Back 12V Model - has a small base footprint and makes it easy to mount against a vertical wall or surface.
• Compact Standard Height Bowl Model - 350mm bowl height - 370mm including seat - the seat is the standard compact size.
• Fresh Water Flush Model The most ideal system as it eliminates smell from salt water.
  Uses the boats existing fresh water pressure pump (Must be 11 LPM or higher) to pump rinse water from the boats fresh water tank.
  Supplied with touch pad control and a solenoid valve and siphon breaker assembly to ensure there is no backflow into the fresh water system.
• Includes a pump-guard strainer and touch pad control
• All Jabsco deluxe silent flush toilets have a “quick flush” which uses only 1.5 litre of water and “flush” which rinses and empties the bowl twice and uses 2.5 litres of water from “dry bowl”.
• They also include a Jabsco touch pad controller with 3 metre cable and a “sealed for life” controller box.

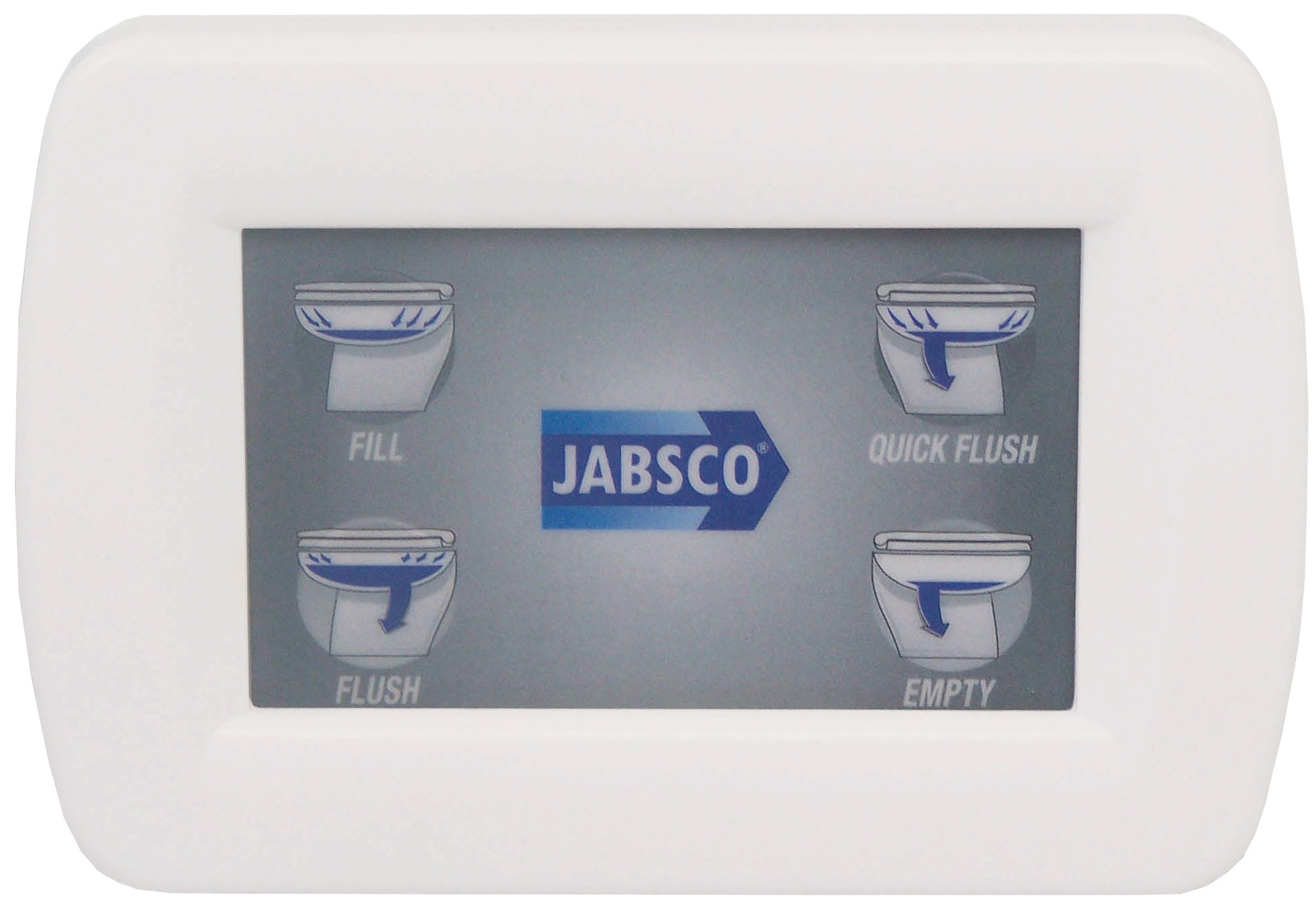

• The one touch control pad offers four flush options - fill, quick flush, flush or empty. In addition the owner can set the control at any time for wet bowl or dry bowl. The dry bowl setting minimises water usage.
• Fresh water intake
• 25Amp for 12V Model
• All plumbing connections are for 20mm (3/4”) I.D inlet hose 38mm (1 1/2”) outlet hose.

Maximum discharge height - 2 metres above base of toilet.
