30021-5S Viper S 1000W 12V RAPID Pro Drum Anchor Winch Kit Bundle with 200m Hi Spec Rope,10m x 8mm 3 strand nylon (shock absorbent) rope & 8m of 6mm Chain

Suits most boats 5.5m to 8 metres.

200mtrs of AUSTRALIAN MADE – HI SPEC 3000 rope, spliced to 10mtrs of 3 strand 8mm premium shock absorbent rope (Viper call it shock cord) which is then spliced to 8mtrs of 6mm short link gal chain.

Viper “S” Series RAPID 1000W All Stainless Steel Submersible Winch Bundle.
Includes 200MTRS Hi Spec 3000 Rope Spliced to a 10mtr 3 Strand Shock Cord D Shackled to 8mtrs of 6mm Short Link Gal Chain.
Includes 316 Stainless Steel Marine Gearbox and motor with IP68 Waterproof Certification.

Great value for money - just have a look at all the hardware and goodies included in this kit!
 (see the What's in the Box tab)


  • New Emergency Manual Release Safety Feature
  • 1000W Submersible Stainless Steel Electric Motor with IP68 Certification
  • 28mm Solid S/S Shaft With 3 Support Bearings
  • 8mm Marine Grade 316 Plate S/S Hand Polished to a Mirror Finish
  • Viper 316 Stainless Steel Marine Worm Drive Gear Box
  • 360 Degree Motor Rotation with 16 Different Positions
  • Max fall rate: 50mtrs per minute
  • Max Retrieval rate: 45 mtrs per minute
  • Suits most boats 5.5m to 8 metres.
  • Weight: 17 kgs (winch only)
  • Well Clearance Required: Width 395mm x depth 410mm x height 260mm

All you have to add is your own cabling or one of the pre assembled tinned copper marine wiring looms, you will never have to break your back pulling up your anchor and chain again!

3B&S cables are already attached to our motor and leak tested to a IP68 Rating.

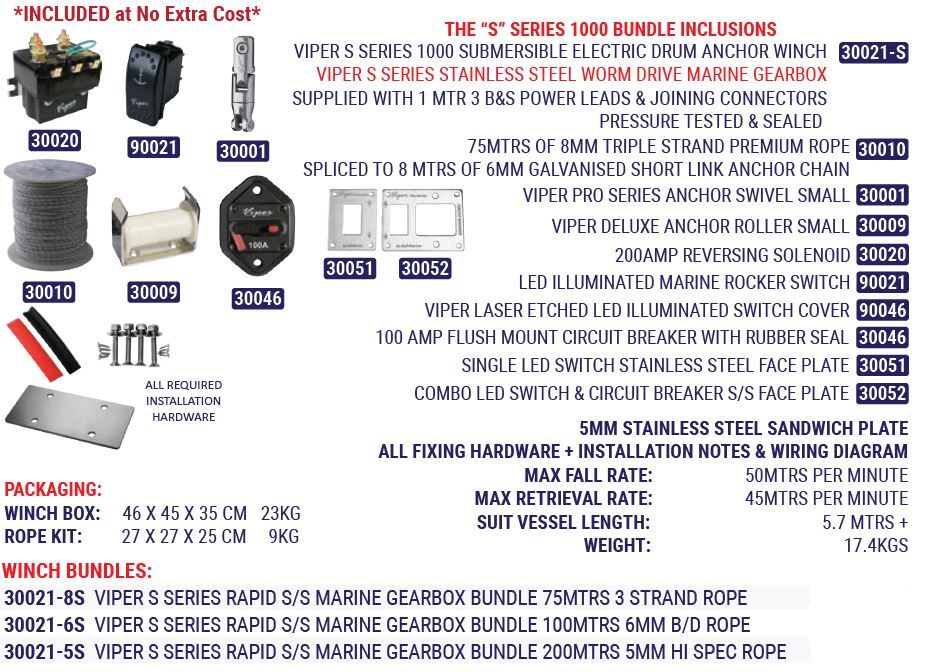

What's in the Box?

  • 30021 - Viper "S" series 1000 All Stainless Steel Submersible Anchor Winch Supplied With 1 mtr 3 b&s power leads & joining connectors pressure tested & sealed
  • 200mtrs of 5mm 12 Plait Uhmwpe Hi Spec 3000 Rope, Pre-Spliced to a 10mtr 8mm 3 Strand Shock Cord & Chain Kit- (2050kg B/Strain with 8meters of 6mm chain)
  • 30001 - Viper pro series anchor swivel - small
  • 30009 - Viper deluxe anchor roller - small
  • 30020 - 200amp reversing solenoid
  • 90021 - LEDilluminated marine rocker switch
  • 90046 - Viper laser etched led illuminated switch cover
  • 30046 - 100 amp flush mount circuit breaker with rubber seal
  • 30051 - Single LED switch stainless steel face plate
  • 30052 - Combo LED switch & circuit breaker S/S face plate
  • 5mm stainless steel sandwich plate
  • All fixing hardware
  • Installation notes & wiring diagram

Recommended Optional Extras (also shown in this category)

  • Premade Wiring loom - choice of two: up to 6mt boat or 8mt boat
  • Chain Sock
  • Fitment Kit (if fiting to an aluminium boat)
SKU 991433
Model # 30021-5S
Brand Viper
Shipping Weight 21.0000kg
Shipping Width 0.490m
Shipping Height 0.340m
Shipping Length 0.490m
Unit Of Measure Kit

Viper 5 Year performance warranty.
