Lewmar FLUSH 3G Hatch Size 60 Dark Grey 399604923 - 170XXX

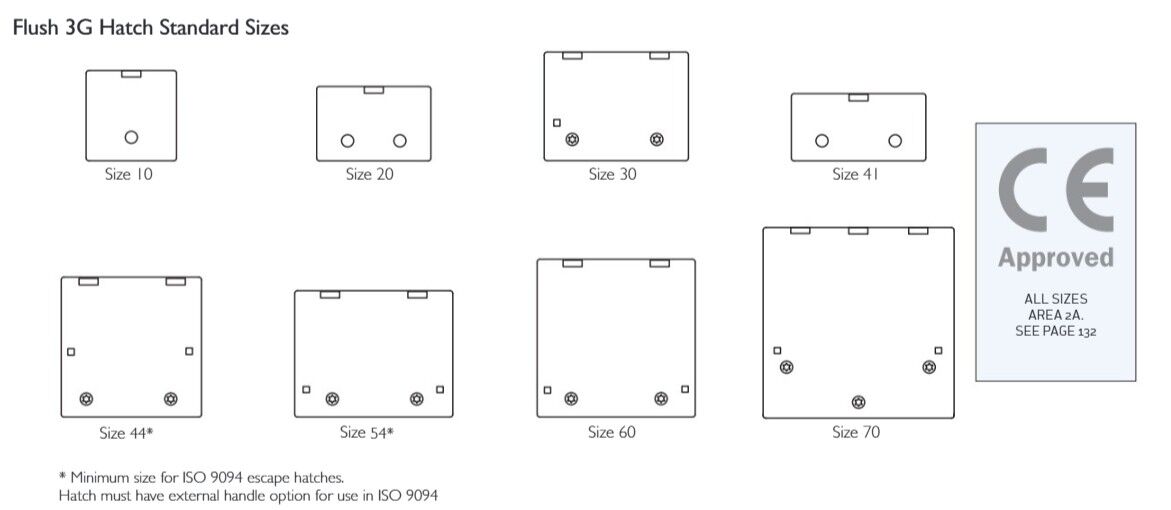

Hatch: Size 60
Overall Outside Size: 577mm x 577mm

Cut Out Size : 507mm x mm

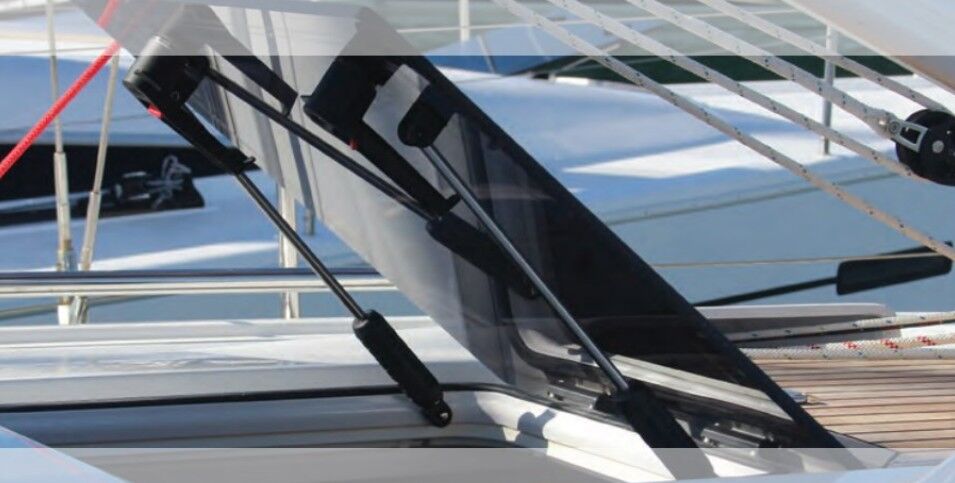

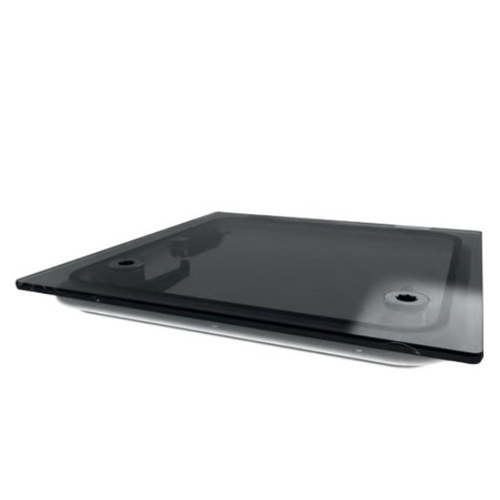

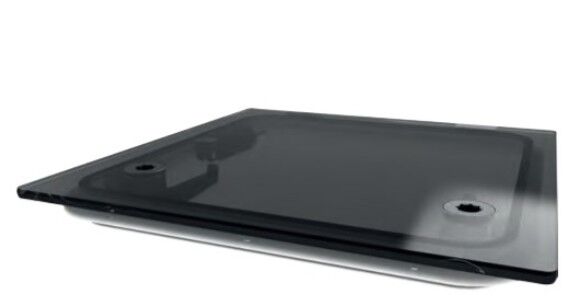

This Lewmar 3G Flush hatch has a tough, tinted acrylic, flush panel which gives a very neat appearance, as it is all that can be seen on deck.
CE Aproved as Area 2A* category (*subject to some mounting requirements).

Features:

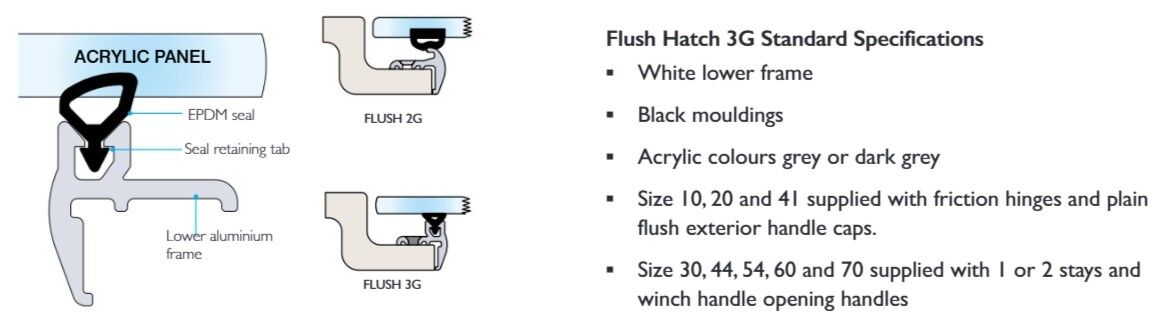

▪ Lower frame mounted seal
▪ Strengthened, extruded aluminium frame hidden discreetly below deck
▪ Completely flush fittings
▪ Exterior handle available for foredeck use
▪ Interchangeable with Flush Hatch 2G
▪ Built in locking mechanism

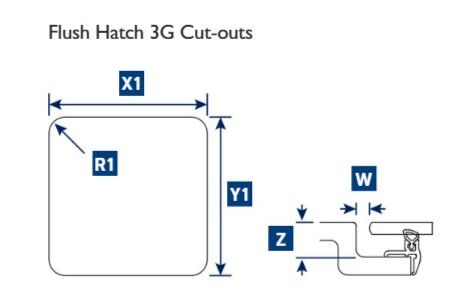

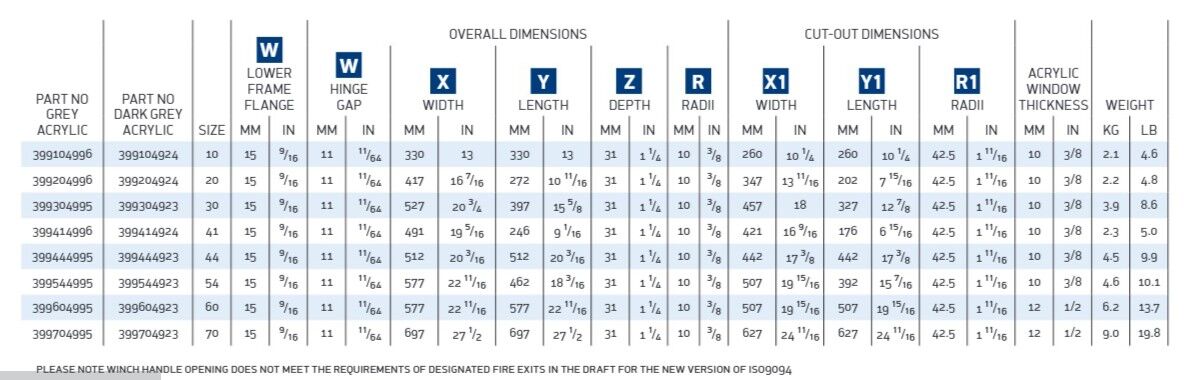

Dimensions: (use with the dimensional drawing pictures and table above)

  • Overall Outside: 577mm x 577mm
  • Cut Out : 507mm x 507mm
  • Height: 25mm
  • Radius R1: 42.5m
  • Acrylic Thicknes: 12mm
  • Weight:  6.2Kg

Notes:

  • Surface must not flex if it does make a frame.
  • Please note winch handle opening does not meet the requirements of Designated Fire Exits in the draft for the new version of ISO9094.



(988228)

SKU 988228
Barcode # 743683165559
Brand Lewmar
Shipping Weight 7.2000kg
Shipping Width 0.680m
Shipping Height 0.110m
Shipping Length 0.680m
Shipping Cubic 0.050864000m3
Unit Of Measure Each
