Lewmar FLUSH 3G Hatch Size 41 Dark Grey 399414924 - 170XXX

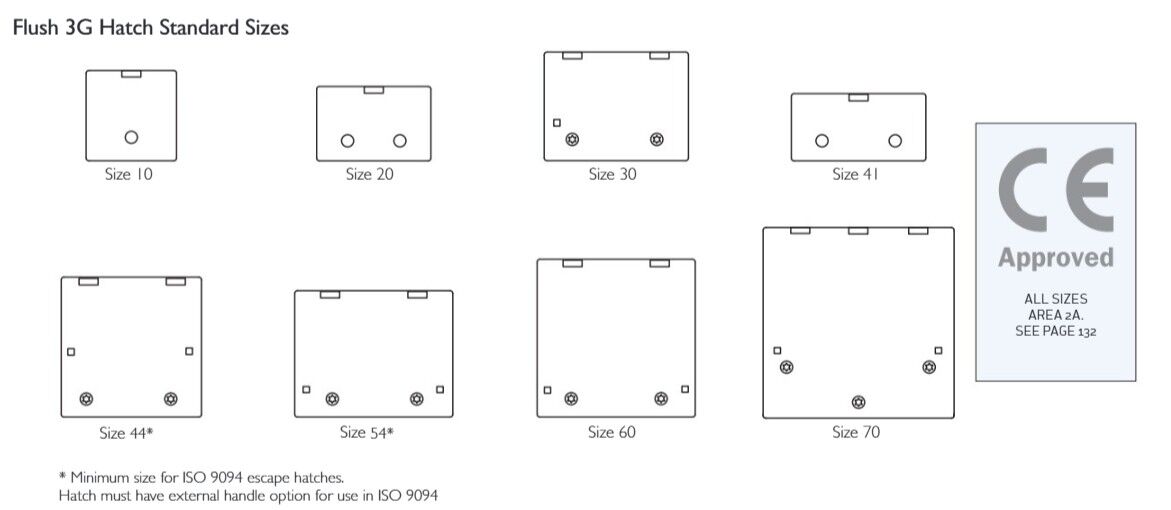

Hatch: Size 41

Overall Outside Size: 491mm x 246mm
Cut Out Size : 421mm x 176mm

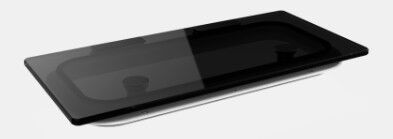

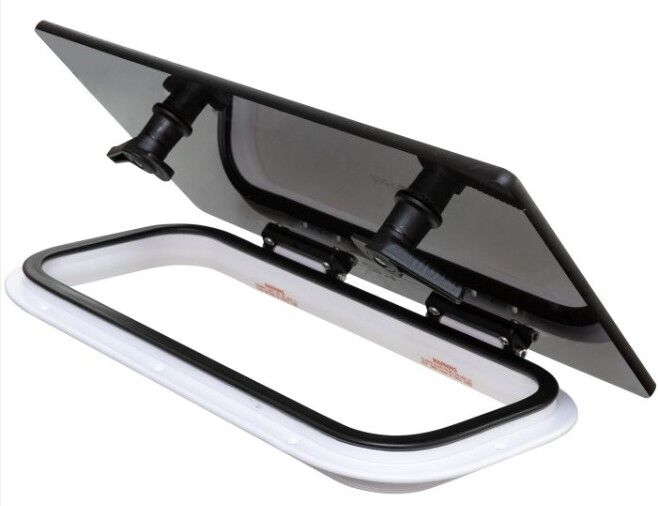

This Lewmar 3G Flush hatch has a tough, tinted acrylic, flush panel which gives a very neat appearance, as it is all that can be seen on deck.
CE Aproved as Area 2A* category (*subject to some mounting requirements).

Features:

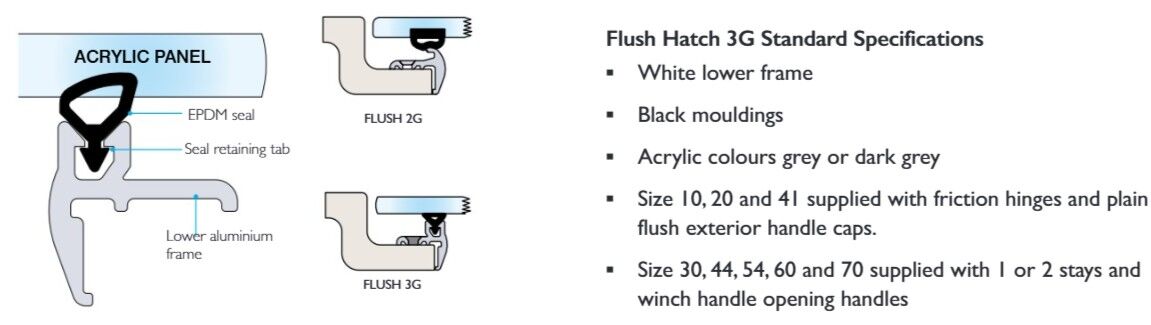

▪ Lower frame mounted seal
▪ Strengthened, extruded aluminium frame hidden discreetly below deck
▪ Completely flush fittings
▪ Exterior handle available for foredeck use
▪ Interchangeable with Flush Hatch 2G
▪ Built in locking mechanism

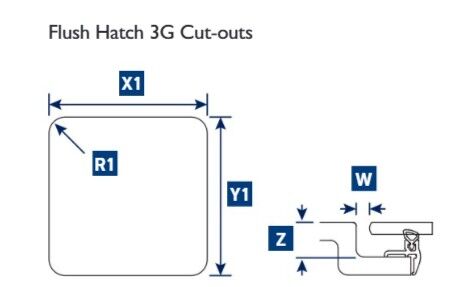

Dimensions: (use with the dimensional drawing pictures and table above)

  • Overall Outside Size: 491mm x 246mm
  • Cut Out Size : 421mm x 176mm
  • Radius R1: 42.5m
  • Acrylic Thicknes: 10mm
  • Weight:  5.0Kg

Notes:

  • Surface must not flex if it does make a frame.
  • Please note winch handle opening does not meet the requirements of Designated Fire Exits in the draft for the new version of ISO9094.



(988229)

SKU 988229
Brand Lewmar
Shipping Weight 6.2000kg
Shipping Width 0.500m
Shipping Height 0.110m
Shipping Length 0.520m
Shipping Cubic 0.028600000m3
Unit Of Measure Each
