Bolt Trim Tab Planes 12x12 (Pair) BOLT1212 - 499/BOLT1212 - (Fixed Upper Hinge)

 Suits Boats Most Trailer Boats

Trim Tab Plane Size: 12" Width (Span) x 12" for and aft (Chord)

Suits: Most trailer boats up to 7.5 metres.


  • Reduce bow rise, plane faster, correct listing, and increase performance with Bennett’s BOLT Electric trim tab systems.
  • BOLT systems feature an innovative actuator seal design built to outlast any electric trim tab system on the market.

Control Kit is also needed -  there are four control kit choices so these are sold separately - see below).

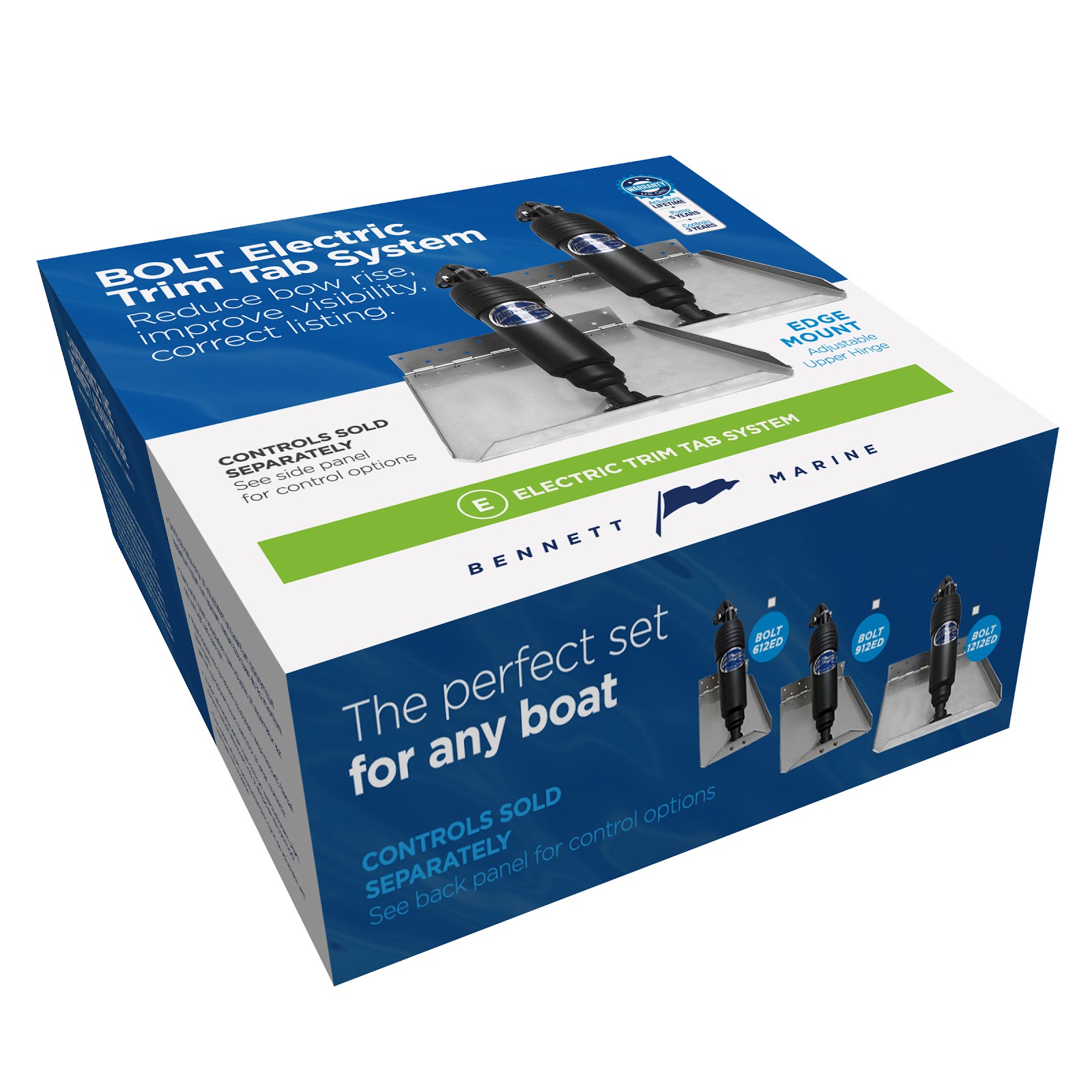

What's in the Box?

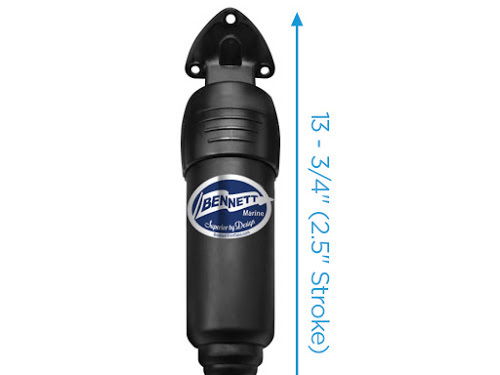

  • 2 x 12 Volt actuators with fixed upper hinges (BEA2000)
  • 1 x 6-ft. wire harnesses and the waterproof connectors (for the actuators)
  • 2 x  Stainless steel trim planes (tabs) and mounting plates (with interlocking hinge)
  • 2 x 20-ft. actuator extension wire harnesses with waterproof connectors

Advice Tip:

Note: On this kit the actuators attach near the centre of the trim plane (about 9" out) and  the upper actuator hinges are fixed.

SKU 990435
Model # 499/BOLT1212
Brand Bennett
Shipping Weight 7.0000kg
Shipping Width 0.300m
Shipping Height 0.400m
Shipping Length 0.600m
Unit Of Measure Pair

Bennett also offers a Warranty - BOLT actuators are limited life time. BOLT Controls are 12 months.
