30072-5S Viper S 1000W 12V S GRAVITY FEED Free Fall Drum Anchor Winch Bundle Kit  with 165m 5mm Hi Spec
Suits most boats 5.5m to 8 metres.

Viper GRAVITY FEED “S” Series Free Fall 1000W All Stainless Steel Submersible Winch Bundle
Includes 165m 5mm Hi-Spec Rope with 10m shock cord and 8mtrs Of 6mm Short Link Gal Chain
 Now Includes 316 Stainless Steel Marine Gearbox and motor with IP68 Waterproof Certification

Great value for money - just have a look at all the harware and goodies included in this kit! (see the What's in the Box tab)


  • 1000W Submersible Stainless Steel Electric Motor with IP68 Certification
  • 28mm Solid S/S Shaft With 3 Support Bearings
  • 8mm Marine Grade 316 Plate S/S Hand Polished to a Mirror Finish
  • Viper 316 Stainless Steel Marine Worm Drive Gear Box
  • 360 Degree Motor Rotation with 16 Different Positions
  • Max fall rate: 138mtrs per minute
  • Max Retrieval rate: 45 mtrs per minute
  • Suits most boats 5.5m to 8 metres.
  • Weight: 23 kgs (winch only)

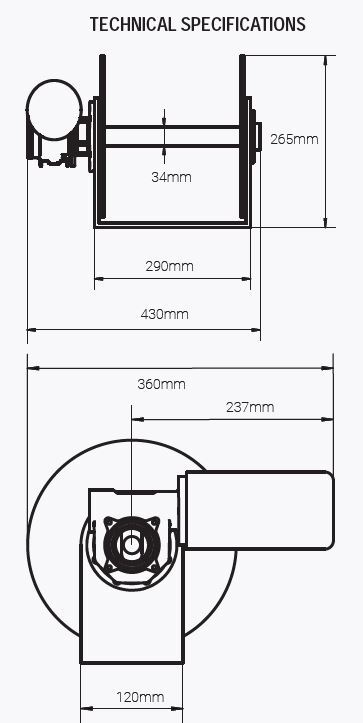

Well Clearance Required: Width 435mm x depth 365mm x height 266mm



What's in the Box?

  • 30021 - Viper "S" Series Gravity Feed 1000 all stainless steel submersible anchor winch supplied with 1 mtr 3 b&s power leads & joining connectors pressure tested & sealed
  • 30059 - 165mtrs of Hi-Spec rope with 10m of shock card and 8 mtrs of 6mm galvanised short link anchor chain
  • 30001 - Viper pro series anchor swivel - small
  • 30009 - Viper deluxe anchor roller - small
  • 30020 - 200amp reversing solenoid
  • 90109 - ELITE series stainless steel up/down switches
  • 30046 - 100 amp flush mount circuit breaker with rubber seal
  • 5mm stainless steel sandwich plate
  • All fixing hardware
  • Installation notes & wiring diagram


Recommended Optional Extras (also shown in this category)

  • Premade Wiring loom - choice of two: up to 6mt boat or 8mt boat
  • Chain Sock
  • Fitment Kit (if fiting to an aluminium boat)
SKU 991435
Model # 30072-5S
Brand Viper
Shipping Weight 23.0000kg
Shipping Width 0.450m
Shipping Height 0.350m
Shipping Length 0.460m
Unit Of Measure Kit

Viper 5 Year performance warranty.
